Roller torque limiter SIKUMAT® SN series
friction-freewith sprocket wheelsafety

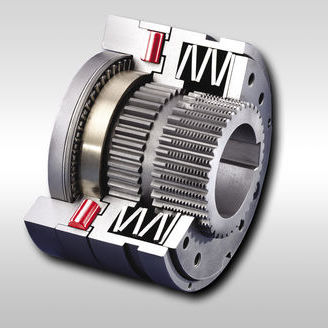

Roller torque limiter - SIKUMAT® SN series   - SIAM RINGSPANN - friction-free / with sprocket wheel / safety
Roller torque limiter - SIKUMAT® SN series   - SIAM RINGSPANN - friction-free / with sprocket wheel / safety
Roller torque limiter - SIKUMAT® SN series   - SIAM RINGSPANN - friction-free / with sprocket wheel / safety - image - 2
Add to favorites
Compare this product

Characteristics

Operation
roller, friction-free, with sprocket wheel
Other characteristics
safety
Torque

Min.: 5 Nm
(3.687811 ft.lb)

Max.: 1,800 Nm
(1,327.611869 ft.lb)

Diameter

Min.: 7 mm
(0.28 in)

Max.: 70 mm
(2.76 in)

Rotational speed

Min.: 150 rpm
(942.4778 rad.min-1)

Max.: 1,000 rpm
(6,283.1853 rad.min-1)

Description

Overload Clutches > Positive Torque Limiters Synchronous Ratcheting, with single rollers Advantages - Synchronous re-engagement after 360° - Integral fixed bearing - Driving keyway in the connecting flange for maximum load capacity - Calibrated micro adjustment of torque setting possible, even post-installation - Cost effective
