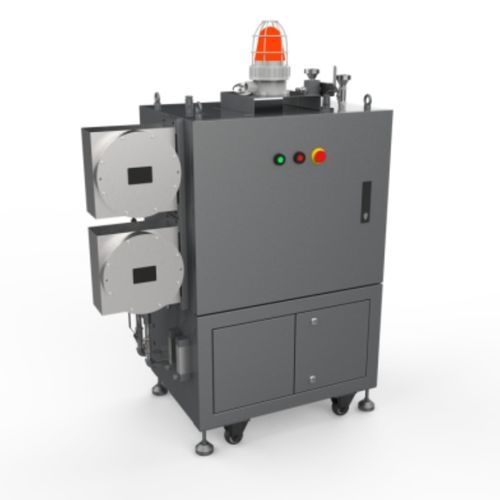

Control electric cabinet

industrialfor electrical equipmentexplosion-proof

Overview
The industrial control box is designed to house control electronics and I/O for hazardous and industrial environments. It provides an explosion-proof enclosure with IP65 protection and compact dimensions suitable for on-site automation panels. Key rated values: rated power 600 W, cable length 5 m, weight 160 kg, size 700×500×1000 mm.

Technical specifications

• Weight: 160 kg
• Size: 700×500×1000 mm
• Power supply: 200–240 VAC, 47–63 Hz, 8 A / 100–200 VAC, 47–63 Hz, 16 A
• Rated power: 600 W
• Cable length: 5 m
• Communication I/O: 8 DI, 8 DO (PNP, 24 V / max 500 mA)
• Expandable I/O: 16 DI, 16 DO (PNP, 24 V / max 500 mA) / 4 AI (voltage), 4 AI (current)
• IP class: IP65
• Operating temperature: -10°C to 50°C
• Storage temperature: -40°C to 55°C
• Humidity: 20%–90% RH
• Type of gas source: clean air

Connectivity

• Communication modes: TCP/IP, Modbus/TCP, CAN, RS485, ProfiNet
• Interfaces: standard digital I/O and analogue inputs as listed above
• Cable: supplied with 5 m connection cable (custom lengths on request)

Environmental and safety

• Explosion-proof rating: Ex db eb pxb IICT4Gb / Ex pxb tb IIIC T130°C Db
• Ingress protection: IP65 (dust-tight and protected against water jets)
• Operating and storage temperature ranges suitable for industrial sites
• Designed for use with clean air as gas source

Typical applications

• Industrial automation panels, hazardous area control in oil & gas, chemical, mining, marine and process industries
