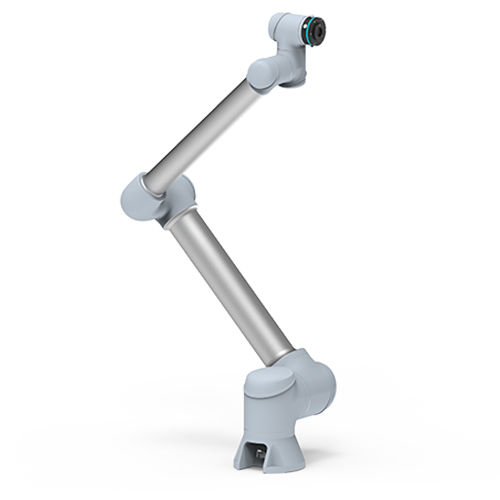

Articulated robot GCR25-1800-Ex

collaborative6-axisfloor-mounted

Product
Duco GCR25-1800-Ex collaborative robot (Ex-proof version) with 6 degrees of freedom, designed for applications with maximum payload 25 kg and a reach of 1800 mm.

Technical data
Maximum payload: 25 kg
Maximum TCP speed: 2.5 m/s
Max. linear speed: 1.5 m/s
Reach: 1800 mm
Repeatability: ± 0.05 mm
IP rating: IP54/IP65
Communication: TCP/IP, Modbus/TCP, Profinet, Ethernet/IP

Technical details
Degrees of freedom: 6
Joint type: articulated arm
Tool interface: GB/T 14468.1-50-4-M6 (compatible with ISO 9409-1)
End flange I/O: 2 digital I/O, 24 V, 0.6 A
Power supply: 220–240 VAC 47–63 Hz 10 A / 100–200 VAC 47–63 Hz 16 A
Typical power consumption: 600 W
Mounting: floor/ground type (as specified: land type)
Ambient operating temperature: -10°C to 50°C
Storage temperature range: -40°C to 55°C
Robot dimensions: 2300 × 440 × 252 mm
Robot package dimensions: 1295 × 540 × 515 mm
Net/Gross weight: 61.6 kg / 70 kg

Joint-specific maximum speeds
J6: ±360° — 225°/s
J5: ±360° — 225°/s
J4: ±360° — 225°/s
J3: ±360° — 150°/s
J2: ±360° — 100°/s
J1: ±360° — 120°/s

Specifications / technical features

• Model: GCR25-1800-Ex
• Manufacturer/Brand: Duco
• Payload: 25 kg
• Reach: 1800 mm
• Repeatability: ± 0.05 mm
• IP protection: IP54/IP65
• Communication interfaces: TCP/IP, Modbus/TCP, Profinet, Ethernet/IP
• Axes/Degrees of freedom: 6
• Tool interface: GB/T 14468.1-50-4-M6 (ISO 9409-1 compatible)
• End flange I/O: 2 digital I/O, 24 V, 0.6 A
• Supply voltage: 220–240 VAC 47–63 Hz (10 A) or 100–200 VAC 47–63 Hz (16 A)
• Typical power consumption: 600 W
• Operating temperature range: -10°C to 50°C
• Storage temperature range: -40°C to 55°C
• Robot dimensions (L×W×H): 2300 × 440 × 252 mm
• Packaging dimensions: 1295 × 540 × 515 mm
• Weight (Net/Gross): 61.6 kg / 70 kg
