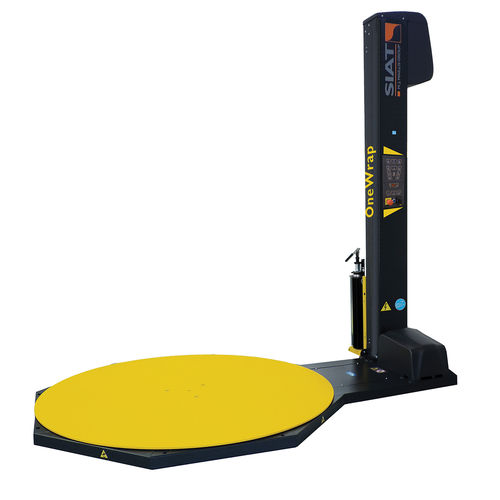

Turntable stretch wrapper ONEWRAP

semi-automaticwith mechanic brakingwith electromagnetic braking

Product overview
ONEWRAP is a semi-automatic stretch wrapper designed for standard pallet wrapping operations. It wraps palletized loads with stretch film and can be supplied with mechanical and electromagnetic brakes (EM / M / FM) or with mechanical and powered pre-stretch carriages (SM – 90% / LP – 240%).

Control panel and operation
A modern control panel with clear icons supports up to 10 programmable wrapping programs to ensure consistent cycles. The machine offers five operating modes:

• Automatic — Up only
• Automatic — Up & Down
• Automatic — Up only + Pause for top sheet
• Automatic — Up & Down + Pause for top sheet
• Manual

Control panel features

• Adjustable carriage ascent and descent speeds
• Top-sheet application cycle with programmable carriage descent before pause (time delay)
• Programmable overwrap from the control panel (time delay)
• Cycle stoppable and resumable (useful for applying corner protection)
• Large two-digit display for viewing parameters and error codes (speed, number of loops, film tension, overwrap, timing, top-sheet descent level)

Advantages

• Flexible configuration to adapt to different pallets and films
• Reliable operation for continuous production
• Easy to install and reposition
• User-friendly control panel for fast operator setup

Key features
Multiple turntable diameters available; belt-driven carriage; two forklift access points for machine repositioning; pallet-height photocell; reclining hinged column to simplify installation and relocation; turntable locking to prevent movement during loading/unloading; 2400 Kg loading capacity.

Options

• Platform diameters: 1500 mm HS (max. 1200 Kg) / 1650 mm / 1800 mm / 2200 mm
• Extended column (M) for pallets up to 2400 mm
• LP powered pre-stretch carriage up to 200%
• Carriage for net/mesh application
• Integrated weighing system
• Burial frame
• Photocell for black film or colored products
• Electric panel heater for ambient temperatures from -20 °C to +20 °C
• Loading ramp
• Safety fences and anti-intrusion barriers
• Stainless steel version

Technical specifications

• Machine type: Semi-automatic stretch wrapper
• Brake and carriage options: mechanical and electromagnetic brake (EM / M / FM); mechanical and powered pre-stretch carriages (SM – 90% / LP – 240%)
• Programs: up to 10 programmable wrapping programs
• Modes: 5 modes (Automatic Up only; Automatic Up & Down; Automatic Up only + Pause for top sheet; Automatic Up & Down + Pause for top sheet; Manual)
• Control features: adjustable carriage speeds; programmable top-sheet pause; programmable overwrap; stoppable/resumable cycle; two-digit display
• Turntable: diameters 1500 mm HS, 1650 mm, 1800 mm, 2200 mm; locking feature
• Load capacity: up to 2400 kg (platform-dependent)
• Column: reclining hinged column; extended column (M) option up to 2400 mm pallet height
• Carriage: belt-driven carriage; LP powered pre-stretch up to 200%; carriage for net/mesh
• Accessories/options: integrated weighing system; burial frame; photocell for black/colored film; electric panel heater -20 °C to +20 °C; loading ramp; safety fences; stainless steel version
• Installation/mobility: two forklift access points for easy repositioning
