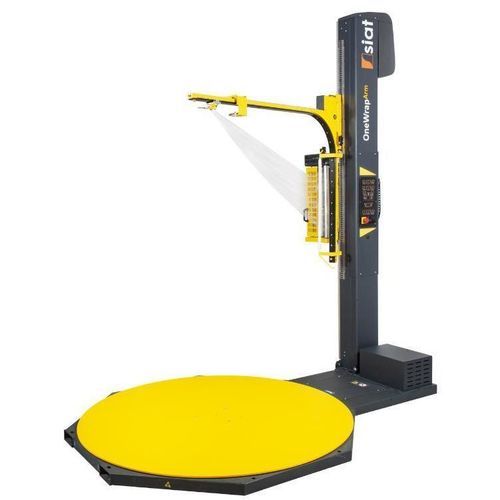

Turntable stretch wrapper OneWrapArm

semi-automaticopenstretch film

Product Overview
OneWrapArm SIAT is a semi-automatic pallet stretch wrapper that automatically attaches and cuts the film at the end of each cycle. Designed for open environments, it integrates safety systems that remove the need for fences or scanners, reducing footprint and improving accessibility. Fully electric and user-friendly, OneWrapArm delivers consistent, secure wrapping with minimal operator intervention — ideal for businesses seeking compact automation and reliable daily performance.

Advantages

• Increased productivity with reduced operator errors
• Compact footprint enabling safe operation without physical barriers
• Lower installation and maintenance costs thanks to all-electric design
• Quick setup and repeatable wrapping results

Key features

• Fully Automatic Film Fixing and Cutting — Automatic film attachment and cut at cycle end ensures consistent wrapping and reduces manual handling.
• Fences-Free & Compact Footprint — Integrated safety systems allow operation without perimeter fences, suitable for facilities with limited space.
• 100% Electric – No Compressed Air Needed — Eliminates the need for compressors or pneumatic lines, lowering installation complexity and energy use.
• Ready-to-Wrap Programs — Store and recall up to 9 +1 custom programs for fast, repeatable setups.

Features table
Feature - Details
MAXIMUM OUTPUT SPEED - Up to 25-35 loads/hr
TURNTABLE SPEED (VARIABLE) - 6 - 12 rpm
POWERED WITH FIXED GEARS (LP) - 240-200-150%
FILM CARRIAGE - LP
LIFTING AND LOWERING SPEED - The reel holder carriage can be adjusted from 0 to 10
FILM CAPACITY - Ext.Ø 300 mm / core Ø76mm (fix) / weight 20 kg thickness up to 35 micron
STANDARD FILM WIDTH (MM) - 500
PLATFORM DIAMETER (MM) - 1.650
MAX. PALLET HEIGHT (MM) INCL. OVERLAP ABOVE PALLET TOP EDGE - 1.900
MIN. PALLET HEIGTH (MM) INCL. OVERLAP ABOVE PALLET TOP EDGE - 800
MAX. / MIN. PALLET SIZE (MM) - 1000x1200 / 600x600
MAX. WORKING LOAD (KG) - 2.400
POWER SUPPLY - 220/240V 50/60Hz / 400V 50/60Hz / others on request
MAX. NOISE LEVEL - 72,0 dB (A)
OPERATING TEMPERATURE - 5 - 40° c

Options

• W8Wrap - Weigh and Wrap: integrated precise pallet weighing, retrofittable
• Remote control for simplified cycle start
• Elongated ramp: L = 1.870 mm (for pallet truck loading)
• Pit-frame installation for flush-mounted ground-level setup

Technical specifications

• Maximum output speed: Up to 25-35 loads/hr
• Turntable speed (variable): 6 - 12 rpm
• Film carriage: LP
• Film capacity: Ext.Ø 300 mm / core Ø76 mm (fixed) / weight 20 kg, thickness up to 35 micron
• Standard film width: 500 mm
• Platform diameter: 1,650 mm
• Maximum pallet height (incl. overlap): 1,900 mm
• Minimum pallet height (incl. overlap): 800 mm
• Max / Min pallet size: 1000x1200 / 600x600 mm
• Max working load: 2,400 kg
• Power supply: 220/240V 50/60Hz / 400V 50/60Hz (others on request)
• Max noise level: 72.0 dB(A)
• Operating temperature: 5 - 40° C
