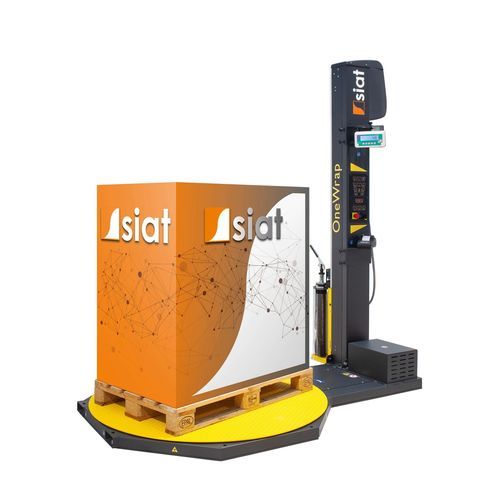

Turntable stretch wrapper W8Wrap

automatictransportfor logistics

Product Overview
W8Wrap integrates pallet wrapping, high-accuracy weighing and automatic label printing in a single add-on kit compatible with SIAT stretch wrappers. Designed for logistics, warehousing and manufacturing operations, W8Wrap streamlines pallet handling, reduces process time and secures traceability from palletization to shipment.

Advantages

• Wrap, weigh and label pallets in one continuous operation
• Reduce handling time and operational costs
• Provide certified pallet weight data to meet transport regulations
• Enable traceability via barcode labels and ERP/WMS integration
• Compact footprint for optimized floor space use

Key features
One Process, Three Functions The system performs wrapping, weighing and labeling in a single workflow, eliminating separate stations and simplifying line layout.

Efficiency and Cost Reduction Integrated weighing and printing reduce manual handling and administrative errors, lowering labour and operational costs.

Certified Shipping Compliance The built-in weighing unit delivers certified measurements for each pallet to ensure compliance with transport rules and avoid penalties.

Full Traceability and Integration The label printer produces weight labels with barcodes (CODE39) and customizable fields (weight, date, logo) for direct integration with ERP and WMS.

Compact and User-Friendly Plug-and-play installation on SIAT stretch wrappers: mount the add-on kit, connect the weighing unit and printer, and the system is operational.

Technical Specifications

• Maximum capacity: 2,400 kg
• Total height from the ground: 95 mm
• Number of load cells: 6
• Indicator LCD display: 6 digits, backlit, 20 mm digit height, IP67, 6-key membrane keyboard
• Scale connectivity: RS232 / RS485 ports, PC and printer interface
• Label printing: supports adhesive or thermal paper
• Data printing features: customizable with weight, barcode (CODE39), date and logo
• Power supply: 12÷24 VDC ±10%; 6 W
• Add-on kit weight: 185 kg

Ideal for industries

• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical Industry
• Logistics Industry
• E-commerce
