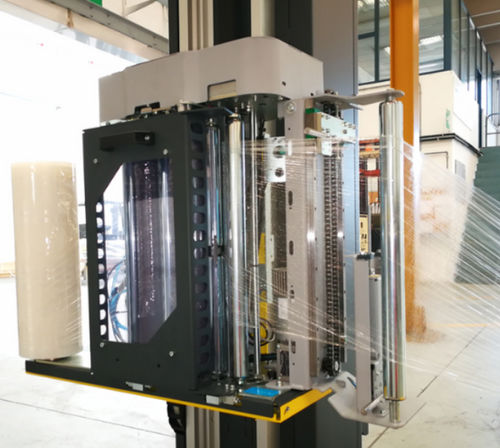

Adjustable film applicator VIKING™ series

Product overview
SIAT pre-stretch systems feature an ergonomic, compact carriage design that enables safe reel loading and fast set-up. Available pre-stretch ratios range from 100% up to over 400%, delivering significant film savings and process optimization.

Advantages

• No film waste – delivers stretch film with high accuracy
• Increased and optimized production capacity through customizable settings and quick set-up
• Flexibility – pre-stretch ratio can be changed easily
• Electronic film tension control with analog sensor
• Reduced carbon footprint and total operating costs
• Adjustable film tension via control panel

Key features
Viking DM™: carriage with two motors offering a wide pre-stretch range (100% to over 400%). Tension and pre-stretch are adjustable from the control panel, eliminating the need for gear kits. Recommended for mixed-pallet applications where film thickness must vary across pallet areas.

Viking PW™: motorized carriage with panel-adjustable tension; pre-stretch is set or modified via gear kits. Available pre-stretch range 100%–350% (in 25% steps) with 200% gear kit as standard. Recommended for applications requiring a fixed pre-stretch.

Both carriages require no threading: the film runs in front of the rollers with a spring roller system that ensures firm adhesion, reduces slippage and lowers film consumption. The design simplifies maintenance and operation.

Options
Two roping configurations are available:

A. Top roping (full roping, electrical): secures the load to the pallet with a narrow band; cycle ends with full band.

B. Bottom roping (partial roping, pneumatic): reduces film width to a band for added stability and film savings.

Ideal for these industries

• Wine & Spirits
• Construction
• Household, Consumer & Personal Care
• Food & Dairy
• Pharmaceutical Industry
• Logistics
• Metal & Glass Industry
• Timber & Wood Industry
• E-commerce

Technical specifications

• Pre-stretch range: 100% up to over 400% (Viking DM™); Viking PW™ available 100%–350% via gear kits (200% standard)
• Drive: Viking DM™ with two motors; Viking PW™ motorized carriage
• Adjustment: Viking DM™ pre-stretch and tension adjustable from control panel; Viking PW™ tension adjustable from panel, pre-stretch via gear kits
• Film path: no threading required; film passes in front of rollers
• Roller system: spring roller system for improved adhesion and reduced slippage
• Film tension control: electronic control with analog sensor
• Roping options: top (full roping, electrical) and bottom (partial roping, pneumatic)
• Benefits: significant film savings, optimized production capacity, reduced maintenance and carbon footprint
• Ergonomics: safe reel loading and fast set-up
