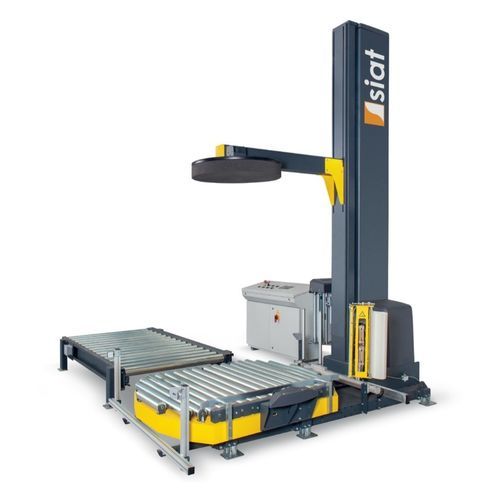

Turntable stretch wrapper ProWrap F/A

fully-automaticfor industrial applicationswith rollers

Overview
The ProWrap F/A by SIAT is a fully automatic turntable stretch wrapping machine for automated lines and high-volume pallet packaging. Manufactured in Italy, it provides precise control of film tension, wrapping speed and cycle parameters. Standard pre-stretch is 250% (upgradeable to 350%) with Viking PW™ carriage. The machine handles pallets up to 2,000 kg and is available with turntable diameters Ø1710 mm and Ø1990 mm. Integrated roller conveyors and configurable 90° infeed/outfeed enable direct integration into automated lines.

Advantages

• Fully automatic operation for unattended cycles
• High wrapping speed for increased throughput
• Reduced film consumption with motorized pre-stretch carriage
• Intuitive 7” touchscreen for easy parameter setup

Key features

• Save Film — Motorized carriage (Viking PW™) with standard 250% pre-stretch (upgradeable) ensures optimized film usage and less waste.
• Perfect Wrapping Control — Full management of speed, film tension and cycle profiles to deliver consistent results on varied pallet sizes and shapes.
• Flexible Line Integration — Configurable 90° layout, integrated roller conveyors and compact footprint make adaptation to existing automated lines straightforward.
• Fully Automatic Process — Automatic clamp, cut and brush end-of-cycle treatment with single-arm execution for clean finishes without manual intervention.

Main technical data
TURNTABLE SIZE: Ø 1710 mm (1000×1200 mm) / Ø 1990 mm (1200×1400 mm)
MAX PALLET WEIGHT: Up to 2,000 kg
COLUMN HEIGHTS: 2200 mm or 3000 mm
OUTPUT CAPACITY: Up to 35 pallets/hour
PRE-STRETCH CARRIAGES: Fixed up to 300% (PW/PWT) / Variable up to 400% (DM)
STANDARD PRE-STRETCH: 250% (upgradeable to 350%)
POWER SUPPLY: 400V 3Ph+N+T (50/60 Hz) / 480V 3Ph+T (60 Hz)
CONTROL SYSTEM: PLC with 7” color touchscreen
PROGRAMS: Up to 20 custom wrapping cycles
INTEGRATED FUNCTIONS: Automatic clamp, cut and brush unit
LINE CONFIGURATION: Infeed/outfeed at 90°, modular layout
OPTIONAL FEATURES: Film welding, roping, pressing unit, 90° film recovery, safety fencing

Technical specifications

• Model: ProWrap F/A
• Manufacturer: SIAT
• Turntable diameters: Ø 1710 mm (for 1000×1200 mm pallets) and Ø 1990 mm (for 1200×1400 mm pallets)
• Maximum pallet weight: Up to 2,000 kg
• Column heights available: 2200 mm or 3000 mm
• Output capacity: Up to 35 pallets per hour
• Pre-stretch carriage types: PW/PWT fixed up to 300%; DM variable up to 400%
• Standard pre-stretch: 250% (upgradeable to 350%)
• Power supply options: 400V 3Ph+N+T (50/60 Hz) or 480V 3Ph+T (60 Hz)
• Control: PLC with 7” color touchscreen
• Programs: Up to 20 custom wrapping cycles
• Integrated functions: Automatic clamp, cut and brush unit
• Line configuration: Infeed/outfeed at 90°, modular layout suitable for automated lines
• Optional systems: Film welding, roping, pressing unit, 90° film recovery, safety fencing
• Typical carriage offered: Viking PW™
• Suitable for: Automated lines and high-volume pallet wrapping
