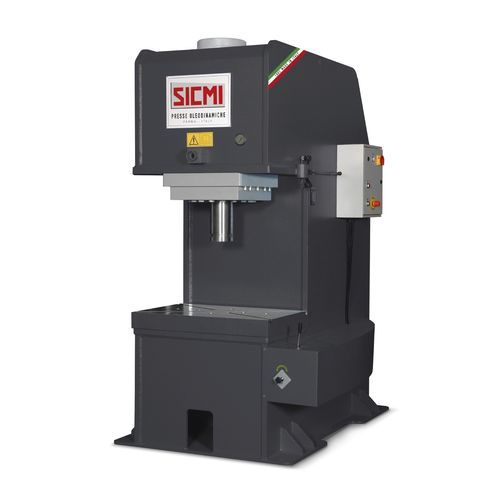

Hydraulic press PCR seriesstraighteningprocessfor production
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- straightening, process, for production
- Applications
- for sheet metal, for the automotive industry, for non-ferrous materials, for coining, for industrial applications, laboratory, repair, for steel, for aluminum, for the aeronautical industry, for profiles
- Structure
- ram, C-frame, compact, column type
- Control
- semi-automatic
- Other characteristics
- with lever control
- Force
Max.: 300 tf
Min.: 40 tf
- Stroke
500 mm
(19.685 in)- Table width
700 mm, 900 mm, 1,000 mm, 1,200 mm
(28 in, 35 in, 39 in, 47 in)- Table length
500 mm, 600 mm, 900 mm
(20 in, 24 in, 35 in)- Approaching speed
Max.: 26 mm/s
2 mm/s, 3 mm/s, 4 mm/s, 5 mm/s, 9 mm/s
Min.: 20 mm/s
- Hydraulic pump power
4 kW, 5.5 kW, 7.5 kW
- Weight
Max.: 11,000 kg
(24,251 lb)Min.: 1,300 kg
(2,866 lb)
Description
Hydraulic press designed to carry out sheet metal straightening work.
The PCR machine workshop press is made with a c-frame structure and has an open recess, which facilitates the positioning of the metal pieces to work on.
The stroke of the hydraulic cylinder is 500mm and the press is equipped with a free rod and a milled work surface for straightening operations.
Available in tonnages from 40t to 300t.
In the basic version, the cylinder is operated by simultaneously using a lever on the control unit and holding down a button on the electrical panel.
On request, it is possible to order the PCR hydraulic press with the semi-automatic function, which provides for the addition of sensors that regulate the ascent and descent of the hydraulic cylinder, automatically stopping its stroke at the pre-established heights.
Accessories:
Pair of V-shaped prisms
Milled platform with T-slots
Stem anti-rotation device
