Hydraulic press PRT 300

straighteningprocessfor production

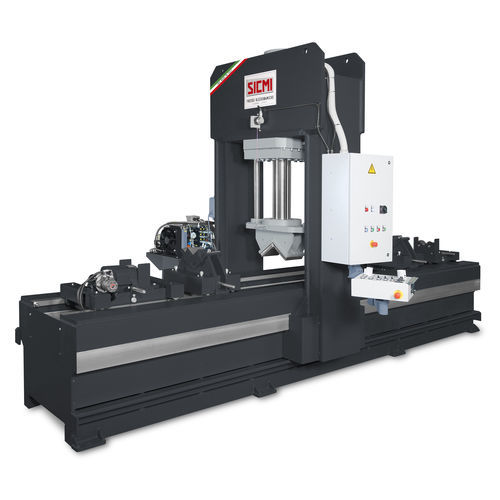

Hydraulic tube straightening press with travelling gantry designed for straightening pipes, bars and round metal profiles. The PRT electro-hydraulic press consists of an upper frame which slides along the main base of the press via a hydraulic motor. On the lower base there are 4 manually operated sliding supports on which the metal pipe to be straightened is placed. The two central supports have the main purpose of supporting the metal profile during the pressing phases, while the two lateral supports are motorized and have the function of lifting and rotating the tube. The hydraulic double speed cylinder is positioned on the mobile upright and the necessary equipment is installed on it to carry out the straightening operations of the metal pipe. This hydraulic tube straightening press with travelling gantry is supplied as standard with Rexroth solenoid valves, with Siemens PLC and with Siemens KTP600 touchscreen display for setting the work quotas and for setting the pressing times and operating pressure.
