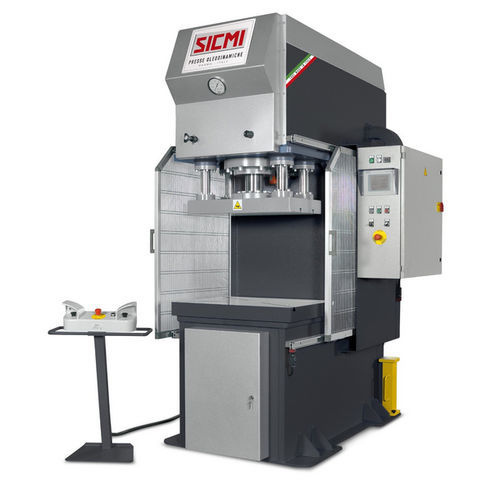

Hydraulic press MCL 35stampingdrawingfor molding
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- stamping, drawing, for molding
- Applications
- for sheet metal, for the automotive industry, for industrial applications, for steel, for aluminum, for the aerospace industry
- Structure
- C-frame
- Control
- automatic
- Other characteristics
- vertical, fixed, shop, custom-made, double-action, cold, digital, high-speed
- Force
35 tf
- Opening
600 mm
(24 in)- Stroke
500 mm
(19.685 in)- Table width
700 mm
(28 in)- Table length
500 mm
(20 in)- Max. pressure
350 bar
(5,076 psi)- Working speed
125 mm/s
- Return speed
68 mm/s
- Approaching speed
9 mm/s
- Hydraulic pump power
4 kW
- Overall length
140 cm
(55 in)- Overall width
110 cm
(43 in)- Overall height
230 cm
(91 in)
Description
Product Details
Standard Equipment
Optional Accessories
Tags
Characteristics / Technical Specifications
- Hydraulic c-frame press for stamping, drawing and sheet metal deformation.
- The MCL hydraulic press has an approach speed of the main cylinder of up to 125 mm/sec and is equipped with a mobile upper surface, which slides along 4 guides and a lower fixed surface, which is bolted to the monolithic structure of the press.
- Both tables are equipped with T-shaped grooves for quick and easy fixing of the moulds.
- The hydraulic cylinder has a stroke of 500mm, while the gap between the work platforms is 600mm.
- The c-frame press is equipped with a hydraulic control unit with Rexroth monitored solenoid valves.
Standard Equipment
- Siemens CPU for quota setting
- Cylinder adjustment with limit switch sensors
- Automatic movement controls using double buttons
- Air/oil heat exchanger
- Pressure switch
- Lateral protective metal fences
- CE Certificate of Conformity – “Annex IV”
Optional Accessories
- Front photoelectric barriers
- Digital control with Siemens display
- Blank holder cushion from 20 to 80 tons
- Digital control of the blank holder cushion
- Timer
- Piece counter
- Side sliding protection nets with safety sensors
- Prismatic guides
- Proportional valve for speed control
- Proportional valve for pressure control
- Separate management of approach speed and working speed
- Variable displacement piston pump
- Air/oil exchanger with independent recirculation
Tags
- Hydraulic C-frame stamping press
- C-frame stamping press
- Hydraulic press for sheet metal forming
- Electro-hydraulic press for molding
- Hydraulic press for drawing
- Industrial molding press
- Hydraulic press for sheet metal stamping
- Industrial hydraulic presses
- Metal press
- Hydraulic press manufacturers
- C-Frame press
Characteristics / Technical Specifications
- Approach speed of main cylinder: up to 125 mm/sec
- Hydraulic cylinder stroke: 500 mm
- Gap between work platforms: 600 mm
- Upper mobile surface slides along 4 guides
- Lower fixed surface bolted to monolithic structure
- T-shaped grooves on both tables for mould fixing
- Hydraulic control unit with Rexroth monitored solenoid valves
- Siemens CPU for quota setting
- Limit switch sensors for cylinder adjustment
- Automatic movement controls (double buttons)
- Air/oil heat exchanger
- Pressure switch
- Lateral protective metal fences
- CE Certificate of Conformity – “Annex IV”
