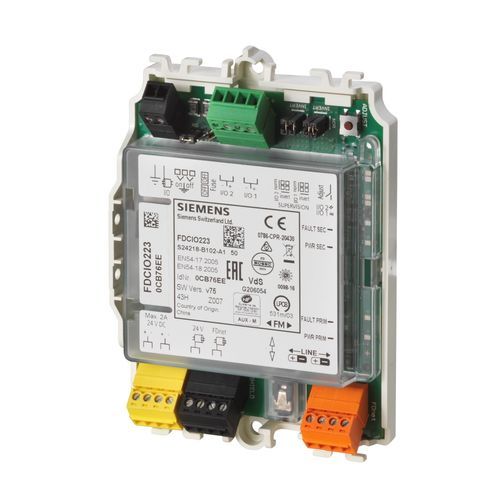

Digital I/O module FDCIO223

Ethernet2-I/Ofor monitoring system

Product description
Input/output transponder module for connection of collective fire detector lines (GMT/conventional) and for monitored control of peripheral devices. Two I/O channels can each be parameterized independently as collective detector line, contact input, control output, or combined control output with acknowledgement input. Status indicated by LEDs. Module includes 2 Transzorb diodes (20 V), 8 resistors and 2 TS35 U-rail mounting feet.

Features

• Connection of collective GMT / conventional detector lines
• Monitored control outputs for smoke dampers, alarm devices, door magnets and extinguishing activation devices
• Two independent I/O channels with flexible parameterization (detector line, contact input, control output, acknowledgement)
• Selectable acknowledgement monitoring time window
• Status indication via LEDs
• Includes Transzorb diodes, resistors and TS35 mounting feet

Documents / Certificates

• Type: FDCIO223
• Order code: S24218-B102-A1
• Data sheet and installation instructions (Input/output module Transponder)
• VdS Certificate - FDCIO223
• Certificate of constancy of performance - FDCIO223
• UKCA / EC Declarations and Declaration of Performance
• Environmental Product Declaration - FDCIO223

Technical specifications

• Operating temperature: -25…60 °C
• Storage temperature: -30…+65 °C
• Standards: CEA GEI I-084, EN 54-13, EN 54-17, EN 54-18
• External power supply: DC 18…32 V
• Operating voltage (bus): FDnet / C-NET DC 12…33 V
• Relative humidity: ≤85 % rel.
• Protection category: IP30 (IP65 with external housing)
• EOL resistors: 3.3 kΩ/680 Ω, 2.7 kΩ/560 Ω, 3.3 kΩ
• Cable capacity: 0.2…1.5 mm² (2.5 mm²)
• Control output: DC 24 V ± 5 % / 2 x 1 A or 1 x 1.5 A
• System compatibility: FDnet -> FS20, AlgoRex, SIGMASYS; C-NET -> FS720
• Communication protocol: FDnet / C-NET
• Detector line compatibility: collective GMT Siemens/Cerberus, Synova conventional/SynoLINE300, SynoLINE600 or similar
• Dimensions (W x H x D): 132 x 90 x 24 mm
• Color: Pure white, RAL 9010
