Digital I/O module FDCIO222

4 relay outputslinepanel

Product description

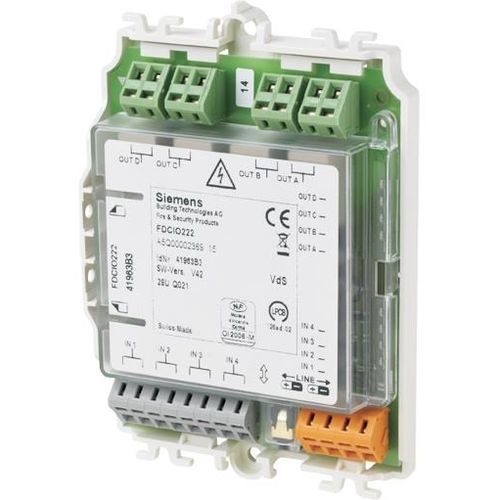

Connection module for 4 independent potential-free make-or-break contacts for indication of technical states (e.g. door or ventilation control) or for alarm actuation (e.g. sprinkler alarm). Inputs are monitored for open-circuit and short-circuit (termination resistors). Inputs can be independently configured via the fire control panel for status or alarm messages. Four outputs with potential-free relay contacts (AC 250 V / 4 A) for fire-control devices. Status indication by LED. Power supply via FDnet/C-NET. Input/output module includes 8 resistors and 2 mounting feet for TS35 U-rail.

Documents available

• Product data sheet
• Certificates (VdS, LPCB, UKCA, EC Declaration, Declaration of Performance)
• Environmental Product Declaration and installation/manual instructions

Characteristics / Technical specifications

• Product No.: FDCIO222
• Stock No.: A5Q00002369
• GTIN / EAN: 4047625014889
• Operating temperature: -25…60 °C
• Storage temperature: -30…+65 °C
• Standard: CEA GEI I-084, EN 54-17, EN 54-18
• Protection category: IP30; IP65 with external housing
• Relative humidity: ≤95 % rel.
• Operating voltage: DC 12…33 V
• Cable capacity: 0.2…1.5 mm² (2.5 mm²)
• System compatibility: FDnet -> FS20, AlgoRex, SIGMASYS; C-NET -> FS720
• Communication protocol: FDnet / C-NET
• Quiescent current: 0.6…0.75 mA
• Relay output (volt-free): AC 250 V, 4 A, max. 1000 VA; DC 30 V, 4 A, max. 120 W
• Dimensions (W x H x D): 130 x 90 x 20 mm
• Color: Pure white, RAL 9010
