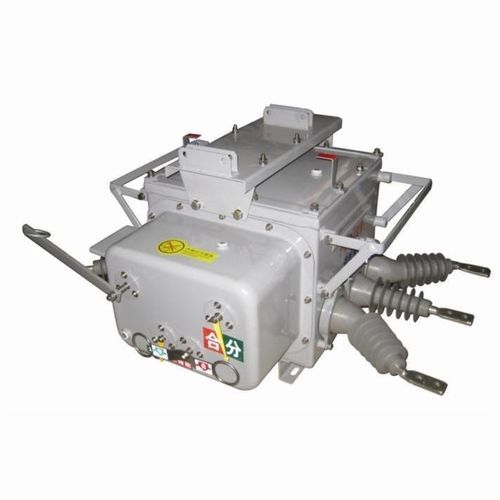

Vacuum circuit breaker ZW20high-voltagethree-phasemedium-power
Add to favorites
Compare this product
Characteristics
- Type
- vacuum
- Electrical characteristics
- high-voltage, medium-power, three-phase
- Operating mode
- high-voltage, vacuum
- Applications
- distribution, for transformers, for overhead lines
- Number of poles
- 3-pole
- Other characteristics
- outdoor, pole-mounted
- VAC
12,000 V
Description
Product overview
The ZW20-12 is an outdoor pole-mounted high-voltage vacuum circuit breaker designed for 12 kV, three-phase AC (50 Hz) distribution systems. It is intended for switching load currents, overloads and short-circuit currents in overhead line installations.
Key features
Mounting and application
Designed for outdoor pole-mounted installation on overhead distribution networks; suitable for switching and protecting lines and transformers in 12 kV three-phase AC (50 Hz) systems.
Caractéristiques / Spécifications techniques
The ZW20-12 is an outdoor pole-mounted high-voltage vacuum circuit breaker designed for 12 kV, three-phase AC (50 Hz) distribution systems. It is intended for switching load currents, overloads and short-circuit currents in overhead line installations.
Key features
- Consistent manufacturing quality
- Low operating noise
- Low power loss and limited temperature rise
Mounting and application
Designed for outdoor pole-mounted installation on overhead distribution networks; suitable for switching and protecting lines and transformers in 12 kV three-phase AC (50 Hz) systems.
Caractéristiques / Spécifications techniques
- Model series: ZW20 series
- Rated voltage: 12 kV
- Phase: Three-phase AC
- Frequency: 50 Hz
- Mounting: Outdoor pole-mounted
- Main function: Switching load current, overload current and short circuit current in electric power systems
- Advantages: Consistent manufacturing quality; low operating noise; low power loss and limited temperature rise
Catalogs
No catalogs are available for this product.
