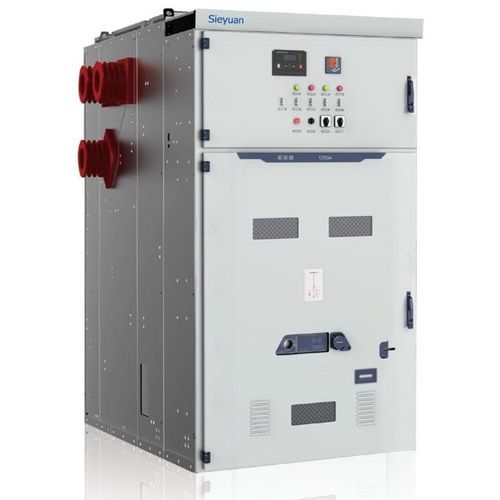

Frequency switchgear MSA-36/40.5

three-phaseACmedium-voltage

Product description
MSA-36/40.5 air-insulated metal-clad switchgear (the switchgear) is independently developed by Sieyuan MV Company. It is designed for three-phase AC power systems at 50 Hz and 60 Hz and is intended for receiving and distributing electrical energy as well as for circuit control, protection and monitoring.

Features

• Equipped with full electrical interlock devices for safe sequencing and operation
• Withdrawable circuit breaker module fitted with door interlock during withdrawal/insertion to protect personnel
• Anti-tilt design for withdrawable units to improve operational safety and flexibility
• Protection degree complies with IP4X requirements

Technical specifications

• Rated system: three-phase AC, 50 Hz / 60 Hz
• Nominal voltage rating: 36 / 40.5 kV
• Main functions: receiving and distributing electricity; circuit control, protection and monitoring
• Design: air-insulated, metal-clad structure
• Safety features: full electrical interlocks; door interlock on withdrawable circuit breaker module; anti-tilt design for withdrawable units
• Protection level: IP4X
• Manufacturer / developer: Sieyuan MV Company
