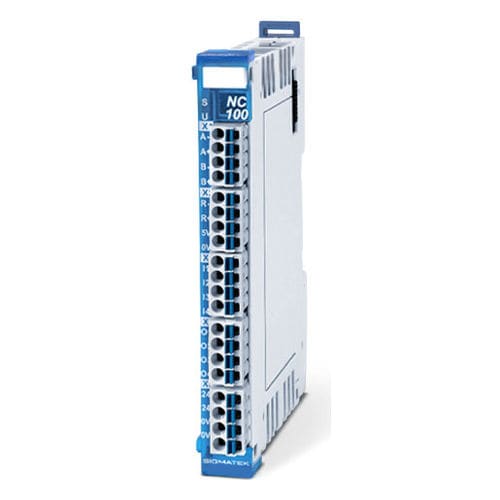

Digital I/O module NC 100TTLRS4224 digital inputs
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- RS422, TTL
- Number of inputs/outputs
- 4 digital inputs, 4 digital outputs
- Applications
- current, position
- Mounting
- cabinet
- Other characteristics
- compact, IP20
Description
1 incremental encoder
Encoder power supply +5 V DC
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Performance Data
Supply voltage -
+24 V DC (+18-30 V DC)
Input voltage -
+24 V DC (+18-30 V DC)
Input current -
3.7 mA at +24 V DC
Input delay -
typically 10 µs
Short-circuit proof, current limited -
Yes
Max. load current/channel -
2 A
Max. total current -
6 A
Output voltage -
typically +24 V DC
Incremental Encoder Input
Number -
1
Incremental encoder signal TTL (A, B, R)
TTL-signal (1200 Ω Pull-Up)
Input frequency -
maximum 125 kHz
Counter frequency -
maximum 500 kHz
Resolution -
16 bits
Power supply -
+5 V DC/0.2 A short-circuit proof
Catalogs
SIGMATEK- Product Catalog
415 Pages
