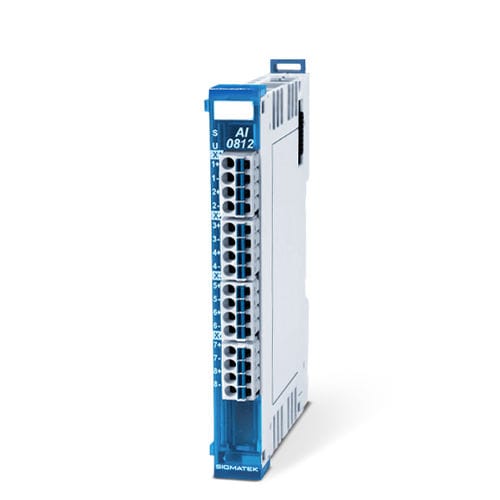

Analog input module AI 0812temperature8 analog inputsDIN rail
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Applications
- temperature
- Number of inputs/outputs
- 8 analog inputs
- Mounting
- DIN rail
- Other characteristics
- configurable, compact
Description
8 analog PT1000/KTY resistance temperature sensors (16 bits)
For the S-DIAS-System, EPLAN-Makros for simple control cabinet integration are provided.
Type -
PT1000/KTY
Number -
8
Sensor types -
PT1000
KTY10-62
KTY11-62
KTY81-110
KTY81-120
KTY81-150
KTY81-121
KTY81-122
Measurement range -
-50 ... +850 °C or 397.2 ... 4575.3 Ω
Measurement precision -
0.75 % of maximum measurement value
Conversion time for all channels -
1 ms
Hardware filter -
typically 1 kHz, low pass 3rd order
Software filter -
configurable (10, 25, 50, 100 Hz or off)
Mechanical Features
Dimensions -
12.5 x 104 x 72 mm (W x H x D)
Protection type -
IP20
Article Number/Certification
Article number -
20-009-0812
Standardization/certification -
UL 508 (E247993)
