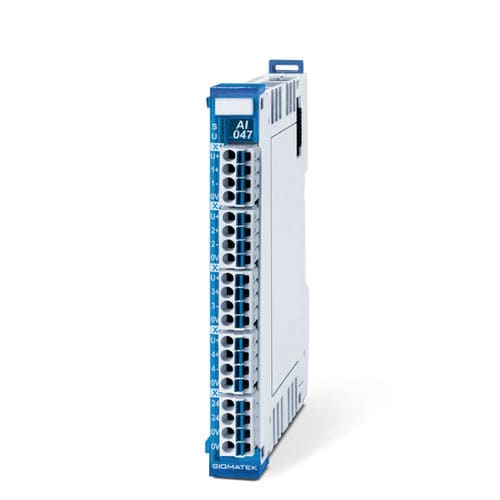

Analog input module AI 047
current4 analog inputsDIN rail

analog input module
analog input module
analog input module
Add to favorites
Compare this product


Characteristics

Signal type
analog
Applications
current
Number of inputs/outputs
4 analog inputs
Mounting
DIN rail
Other characteristics
compact

Description

4 analog current inputs (17 bits) Measurement range of 0-22 mA or 4-22 mA For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet. Analog Inputs Type - Current Number - 4 Resolution - 17 bits Measurement range - 0-22 mA or 4-22 mA Measurement precision - 0.060 % (20-40 °C) Conversion time per channel - ≥ 10 μs min. Cable break monitor - Yes Hardware filter - 10 kHz, low pass 3rd order (differential mode); 100 kHz, low pass 1st order (common mode) Software filter - configurable Galvanic isolation - Yes Mechanical Features Dimensions - 12.5 x 104 x 72 mm (W x H x D) Protection type - IP20 Article Number/Certification Article number - 20-009-047 Standardization/­certification - designed according to UL
