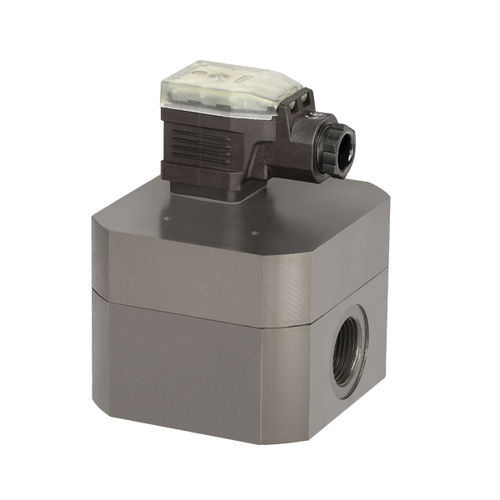

Positive displacement flow meter VZ0.04AL
for oilfor chemicalsfor paint

positive displacement flow meter
positive displacement flow meter
Add to favorites
Compare this product


positive displacement
for oil, for chemicals, for paint
Pipe diameter
DN15 - 1/2"
stainless steel, aluminum
with pulse output
Supply voltage
Protection level
for dosing, for filling applications
Process pressure

Min.: 0 bar (0 psi)

Max.: 200 bar (2,900.75 psi)

Process temperature

Min.: -10 °C (14 °F)

Max.: 80 °C (176 °F)

Volumetric flow rate

Min.: 0 l/min (0 us gal/min)

Max.: 4 l/min (1.1 us gal/min)


2 %


0.5 %


Various casing and sealing materials. Universally applicable for different media to be measured Standard process connection via connection plates. Quickly replaceable without long process interruption output signal: Pulse signal The SIKA gearwheel volume sensors are suitable for the detection of volumetric flows with high as well as varying viscosity in the following areas of application, among others: • consumption measurement • control of filling processes • dosing of oils and chemicals • detection of paints / varnishes A very precisely fitted pair of gearwheels inside the housing forms the measuring unit. The inflowing medium sets the gearwheel pair in rotation. The rotary movement is scanned by sensors without contact. Since each individual tooth generates a pulse, this results in a very high resolution. Thus, even the smallest volumes can be measured or dosed exactly. The maximum pressure drop should not exceed 16 bar. This limits the measuring range for highly viscous media (see pressure drop diagrams).
