Process indicator MA501

digitalpanel-mountprogrammable

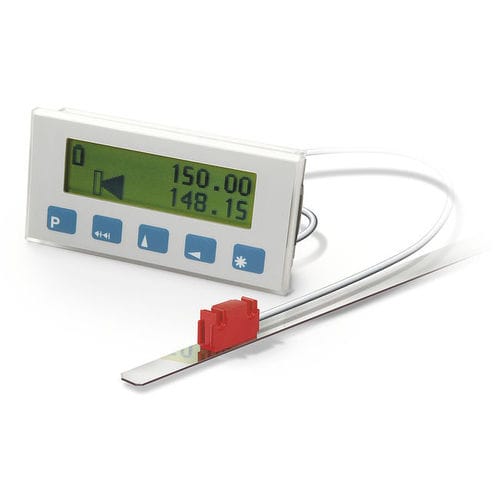

Electronic display MA501 Quasi-absolute, multi-line LCD dot matrix display Profile MA501: Display accuracy max. 10 μm Repeat accuracy max. ±0.01 mm freely programmable high-resolution LCD dot matrix display Battery-buffered memory hard-wired sensor Option: serial RS485 interface Feature Technical data Additional information Housing design built-in housing, plastic (transparent) switchboard cutout 93+0-8 x 45+0-6 IEC 61554 Sensor/band reading distance - 22 mm - Cable sheath - PVC - 4-wire o3.15.q_3 mm (data/network) - PVC - 6-wire o3.55.q_3 mm (sensor) Weight - "0.07 kg - Electrical data - - Feature - Technical data - Additional information Operating voltage - 24VDC ±20% (10... 30 V) - reverse polarity protected - 1.5 V DC (1.2... 1.6 V) - backup Current consumption - 8mA - active at 24 V DC - <0.1 mA - at 1.5 V DC active measuring System; display switched off Display/display range - 2-row, DOT matrix - -999999 ... 999999 Status display - two-color backlit LCD display (green/red) - only with SW03 software Interface - RS485 (LAN interface) - Type of connection - cable led outward - supply System data - - Feature - Technical data - Additional information Resolution - 210 pm - System accuracy - ±(0.1 + 0.01 x L) L in m - MB500 magnetic strip at Ty = 20 :C Repeat accuracy - ±1 increment(s) - Travel speed - 25 nVs - at 0.1 ... 2 mm reading distance Ambient conditions - - Feature - Technical data - Additional information Ambient température - 0 ... 70 =C - Storage température - -30 ... 80 SC
