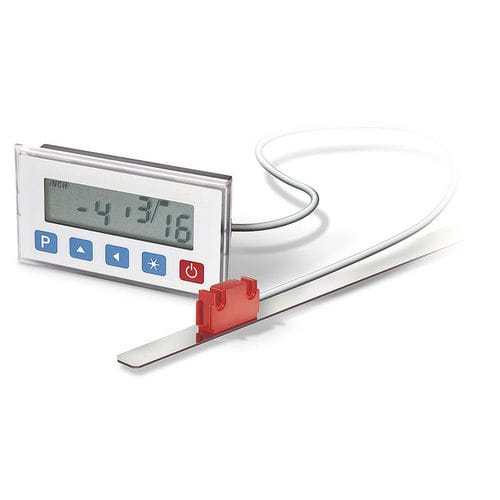

Process indicator MA503/2
digitalpanel-mount

process indicator
process indicator
process indicator
Add to favorites
Compare this product


Characteristics

Measured value
process
Display
digital
Type
panel-mount

Description

Electronic display MA503/2 Quasi-absolute, mains-independent LCD display, display accuracy 10 μm Profile MA503/2: Max. display accuracy 10 μm or 1/64 inch Repeat accuracy max. ±0.01 mm Low-power LCD with decimal and fraction-inch function Reading distance ≤2 mm Incremental measurement and reset function Direct reference/offset value input Battery-buffered memory Battery operation MS500H sensor pluggable Feature - Technical data - Additional information Housing design - built-in housing, plastic - switchboard cutout 92+^'8 x 45+^'6 Electrical data - - Feature - Technical data - Additional information Operating voltage - 3 V DC - reverse polarity protected Current consumption - -220 pA - at 3 V DC Display/display range - low-power LCD, ~13 mm height - décimal to 10 pm, inch fraction to 1/64 inch - -1999999 ... 1999999 - Battery monitoring - <1.1 V - low-batt symbol Type of connection - integrated battery compartment - supply System data - - Feature - Technical data - Additional information Resolution - 0.01, 0.05, 0.1, 1 mm - programmable angle display - 0.001, 0.01 , 1/16, 1/32, 1/64 inch - System accuracy - ±(0.1 + 0.01 x L) mm, L in m - atTu = 20=C - ±(0.05 + 0.01 x L) mm, L in m - atTy = 20 =C, optional Repeat accuracy - ±0.01 mm - ±1 digit Travel speed - £5 nVs - Ambient conditions - - Feature - Technical data - Additional information Ambient température - 0 ... 60 =C - Storage température - -10... 70 =C - Relative humidity - £95% - condensation inadmissible EMC - EN 61000-6-2 - interférence résistance / immission - EN 61000-6-4 - emitted interférence / émission Protection category - IP40 whole device - EN 60529 - IP54 at the front - EN 60529
