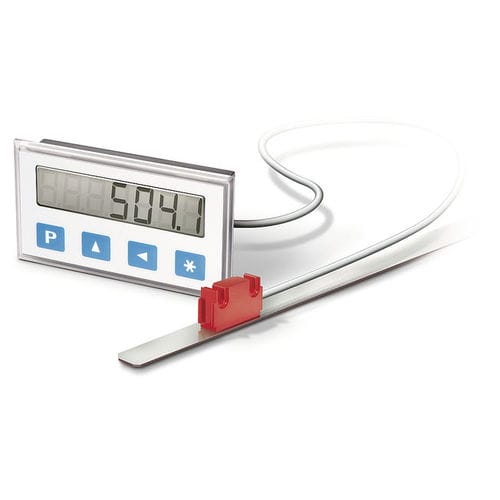

Process indicator MA504/1
digitalpanel-mount

process indicator
process indicator
process indicator
Add to favorites
Compare this product


Characteristics

Measured value
process
Display
digital
Type
panel-mount

Description

Electronic display MA504/1 Quasi-absolute, small mains-independent LCD display Profile MA504/1: Display accuracy max. 10 μm Repeat accuracy max. ±0.01 mm Lowest-power LCD Metric or decimal-inch indication Incremental measurement and reset function Direct reference/offset value input Battery-buffered memory Battery operation MS500H sensor pluggable Mechanical data Feature - Technical data - Additional information Housing design - built-in housing, plastic - switchboard cutout 67+3 x 33.5*0'3 Electrical data - - Feature - Technical data - Additional information Operating voltage - 3 V DC - Current consumption - -150 |jA - at 3 V DC Display/display range - low-power LCD, ~11 mm height - décimal to 10 pm - -999999... 999999 - Battery monitoring - -2.4 V DC - low-batt symbol Type of connection - integrated battery compartment - supply System data - - Feature - Technical data - Additional information Resolution - 0.01, 0.05, 0.1, 1 mm - programmable angle display - 0.001, 0.01 inch - System accuracy - ±(0.1 + 0.01 x L) mm, L in m - atTu = 20=C - ±(0.05 + 0.01 x L) mm, L in m - atTy = 20 =C, optional Repeat accuracy - ±0.01 mm - ±1 digit Travel speed - £5 nVs - Ambient conditions - - Feature - Technical data - Additional information Ambient température - 0 ... 60 X - Storage température - -10... 70 X - Relative humidity - £95% - condensation inadmissible EMC - EN 61000-6-2 - interférence résistance / immission - EN 61000-6-4 - emitted interférence / émission Protection category - IP40 whole device - EN 60529 - IP54 at the front - EN 60529
