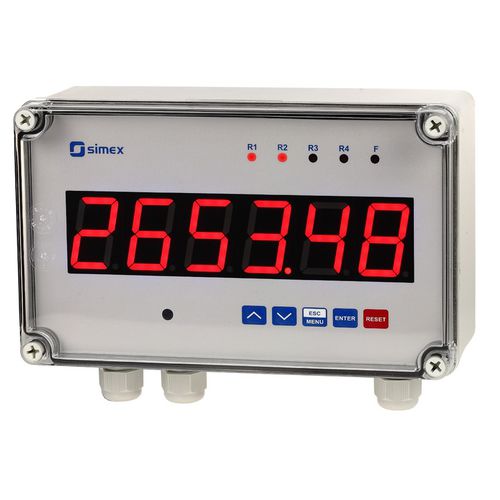

Pulse counter SLIK-638 series

binary6-digitprogrammable

multi-purpose counter in wall mounted IP 67 housing batching function 2 pulse counting inputs + 1 programmable function input 1 counter reset input binary outputs REL / OC digital debouncing filter 4 counter reset sources ultra bright red, green and blue display free configuration software S-Config The SLIK-638 universal, programmable counters encased in a tight, wall-mounted housing (IP 67) with 6-digit, large LED display are equipped with two independent counting inputs that can operate in various configurations (pulse or quadrature). Additional programmable input can change basic function of counting inputs (addition or subtraction of pulses from inputs, change the direction of counting) or hold counting without clearing. The SLIK-638 counter features an independent reset input. The REL / OC outputs with programmable thresholds can be used to control external equipment. The counter may be configured with no need to open the case, by using the remote controller, the local keyboard or with free S-Config software via the RS-485 communication port.
