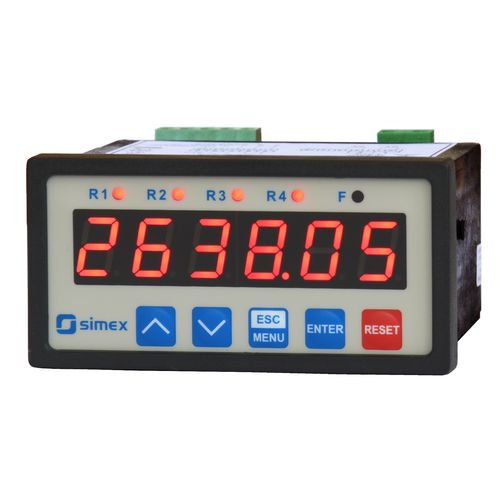

Pulse counter SLK-94T series

pump strokestrokebinary

fast quadrature counter, finp.=250 kHz 1 pulse quadrature counting input 2 programmable function inputs 4 REL / OC outputs prescaler and digital filter RS-485 / Modbus RTU ACCESS option - easy threshold modification free configuration software S-Config The counter type SLK-94T is equipped in 2 programmable inputs which allows external reset of selected counter (or group of counters) or change of counting direction (regardless of quadrature signal phase). Is designed to cooperation with quadrature incremental encoders. The unit can control up to 4 external devices (motors, signalising devices) via build in relay outputs, every in one of two modes (NO and NC). Activation of particular output can be done after achieving of preset value (threshold) by the counter. All inputs of the counter are separated. The counter can be configured with the local keyboard or free S-Config software via the RS-485 communication port.
