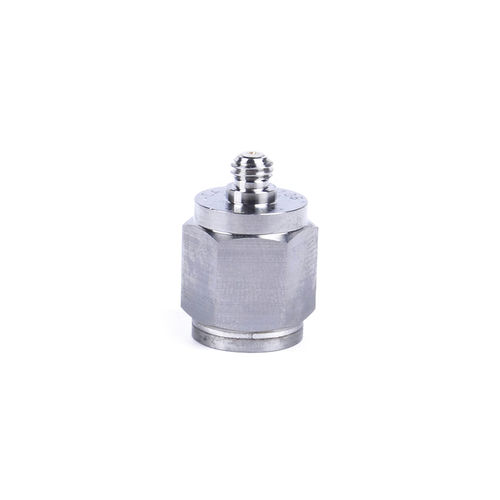

Piezoelectric vibration sensor CA-YD-106

piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
Add to favorites
Compare this product




Features: * General vibration testing * Small size, wide frequency response * Top output Specifications: Sensitivity(20±5℃) - 25pC/g Measurement Range(pk) - 2000 g Max Transverse Sensitivity - ≤5 % Frequency Response(±5%) - 0.5 ~12,000 Hz Mounting Resonant Frequency - 40,000 Hz Operating Temp. Range - -20~+120 ℃ Temperature Response - See Graph Transient Temperature Response - 0.1 g/℃(0.3Hz) Magnetic Sensitivity - 3 g/T Base Strain Sensitivity - 0.8 g/με Case Isolation - >109 Ω Capacitance - ~1500 pF Mounting - M5 Sensing Element - Piezoelectric Ceramics Sensing Geometry - Central compressed Case Material - Stainless steel Weight - 15 g Output - Top L5 Accessories - Certificate - Calibration parameter, frequency response M5 Stud, Protection cap - Each one L5/L5 STYV-1(2m) - one
