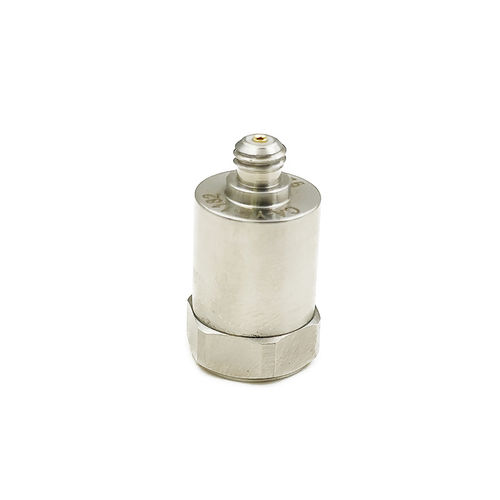

Piezoelectric vibration sensor CA-YD-1182
for general purposes

piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
Add to favorites
Compare this product


for general purposes

Max.: 10,000 Hz

Min.: 1 Hz


IEPE piezoelectric accelerometer CA-YD-1182 Features IEPE, Miniature, Light Weight Wide frequency range, wide dynamic range Cost-effective general purpose accelerometer Top output Specifications Model:CA-YD-1182 Sensitivity(20±5℃) 100 mV/ g Measurement Range(pk) 50 g Max Transverse Sensitivity ≤5 % Frequency Response(±5%) 1~ 10,000 Hz Mounting Resonant Frequency 40,000 Hz Operating Temp. Range -40~+120 ℃ Temperature Response See Graph Shock Limit(pk) 3000 g Max Output Signal(pk) ≤6 V Transient Temperature Response 10 mg/℃ Magnetic Sensitivity 1.5 g/T Base Strain Sensitivity 0.2 mg/με Noise(1~20KHz) <0.5 mg Output Impedance <100 Ω Operating Voltage(Constant current source) +18~+28 VDC Operating Current +2~+10 mA(typical 4mA) DC Bias Voltage 12±2 V Mounting M5 Sensing Element Piezoelectric Ceramics Sensing Geometry Shear Case Material Stainless steel Weight 11 g Output L5 Accessories Certificate Calibration parameters, frequency response M5 Stud,Protection cap One L5/ L5 (2m) STYV-1 One
