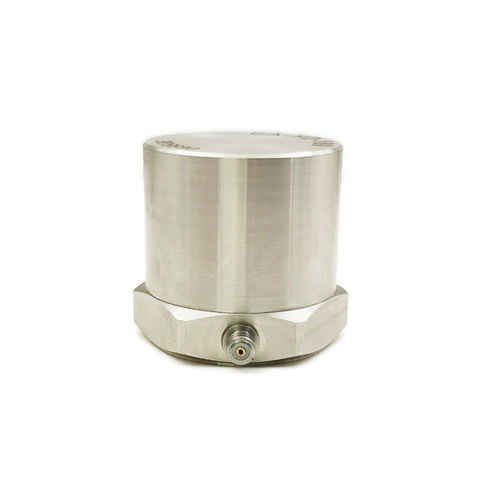

Piezoelectric vibration sensor CA-YD-189

piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
piezoelectric vibration sensor
Add to favorites
Compare this product



Min.: 0.2 Hz

Max.: 1,000 Hz


Features: l Built-in IEPE , Low frequency, high sensitivity 2 L5 side output, matched with general coaxial cable 3 plane shear structure Specifications: Axial Sensitivity ~1000mV/ g Measurement Range(peak) 5 g Transverse Sensitivity ≤5 % Frequency Response(0.5dB) 0.2~ 1,000 Hz Mounting Resonance Frequency 5,000 Hz Temperature Response Refer to the temp. curve Polarity Positive Operating Temp. Range -40~+120 ℃ Shock Limit 500g Operating Voltage (constant-current source) +12~+28 V(DC) Operating Current +2~+10 mA Output Signal (peak) ≤6V Noise <0.04 mg Output Impedance <100 Ω DC Offset Voltage 7±1 V Thermal Transient Sensitivity 8mg/℃(0.3Hz) Magnetic Sensitivity 1.5g/T Base Strain Sensitivity 0.2mg/με Weight 210 g Case Material Stainless steel Mounting Method M5 Sensing Element PZT-5 Structural Design Shear Output Side L5 output Accessories: Sensor Certificate Calibration parameter, frequency response curve M5、M5/M8 bolt Each one L5/L5 STYV-1(2m) one
