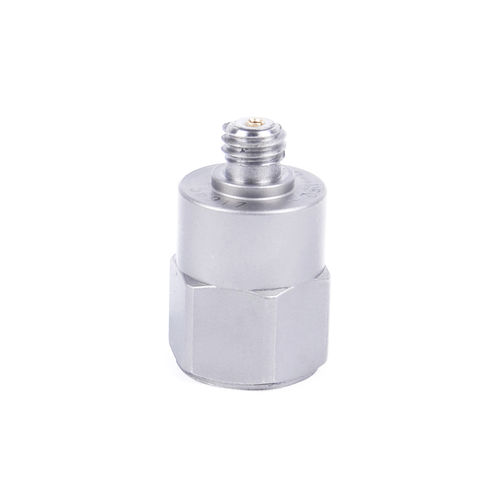

Piezoelectric accelerometer CA-YD-182
high-sensitivityminiature

piezoelectric accelerometer
piezoelectric accelerometer
piezoelectric accelerometer
Add to favorites
Compare this product


Characteristics

Technology
piezoelectric
Other characteristics
high-sensitivity, miniature
Frequency

Max.: 10,000 Hz

Min.: 1 Hz

Description

Piezoelectric Accelerometer (Miniature, High sensitivity) Model: CA-YD-182 Features: IEPE, Miniature, Light Weight Wide frequency range, wide dynamic range Cost-effective general purpose accelerometer Top output Specifications: Sensitivity(20±5℃) - 20 mV/ g Measurement Range(pk) - 250 g Max Transverse Sensitivity - ≤5 % Frequency Response(±5%) - 1~ 10,000 Hz Mounting Resonant Frequency - 40,000 Hz Operating Temp. Range - -40~+120 ℃ Temperature Response - See Graph Shock Limit(pk) - 3000g Max Output Signal(pk) - ≤6 V Transient Temperature Response - 10 mg/℃ Magnetic Sensitivity - 1.5 g/T Base Strain Sensitivity - 0.2 mg/με Noise(1~20KHz) - <0.5 mg Output Impedance - <100 Ω Operating Voltage(Constant current source) - +18~+28 VDC Operating Current - +2~+10 mA(typical 4mA) DC Bias Voltage - 7±1 V Mounting - M5 Sensing Element - Piezoelectric Ceramics Sensing Geometry - Ring Shear Case Material - Stainless steel Weight - 9 g Output - L5 Accessories Certificate - Calibration parameters, frequency response M5 Stud,Protection cap - One L5/ L5 (2m) STYV-1 - One
