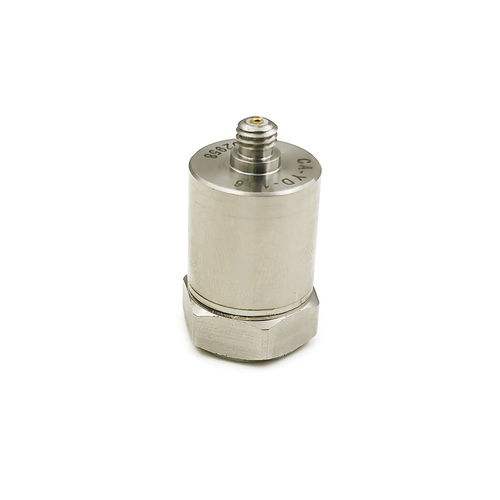

IEPE accelerometer CA-YD-186

IEPE accelerometer
IEPE accelerometer
IEPE accelerometer
IEPE accelerometer
IEPE accelerometer
Add to favorites
Compare this product


Other characteristics
high-sensitivity, low-noise

Max.: 6,000 Hz

Min.: 0.5 Hz


Piezoelectric Accelerometer(IEPE) Model: CA-YD-186 Features: General IEPE accelerometer High sensitivity, Cost-effective Low noise, strong anti-interference Specifications: Sensitivity(20±5℃) - 100 mV/g Measurement Range(pk) - 50 g Max Transverse Sensitivity - ≤5 % Frequency Response(±5%) - 0.5~ 6,000 Hz Mounting Resonant Frequency - 25,000 Hz Operating Temp. Range - -40~+120 ℃ Temperature Response - See Graph Shock Limit(pk) - 2000 g Max Output Signal(pk) - ≤6V Transient Temperature Response - 8 mg/℃(0.3Hz) Magnetic Sensitivity - 1.5 g/T Base Strain Sensitivity - 0.2 mg/με Noise - <0.4 mg Output Impedance - <100 Ω Operating Voltage(constant current source) - +18~+28 VDC Operating Current - +2~+10 mA DC Bias Voltage - 7±1 VDC Mounting - M5 Sensing Element - Piezoelectric Ceramics Sensing Geometry - Shear Case Material - Stainless steel Weight - 30 g Output - L5 Accessories Certificate - Calibration parameter, frequency response M5 Stud, Protection cap - one L5/L5(2m) STYV-1 - one
