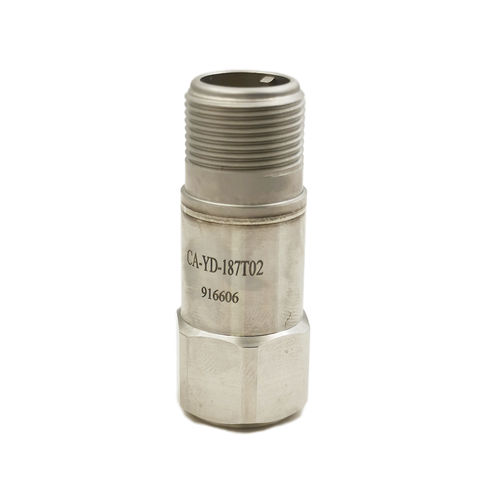

Single-axis accelerometer CA-YD-187T02

single-axis accelerometer
single-axis accelerometer
single-axis accelerometer
single-axis accelerometer
Add to favorites
Compare this product


Number of axes
Other characteristics
low-noise, industrial, voltage output

Max.: 10,000 Hz

Min.: 0.6 Hz


Production description: IEPE is the acronym of integrated piezoelectric.It refers to the internal integerated circuit of accelerometer. Our IEPE piezoelectric sensor has the charge amplifier inside itself,one general IEPE sensor need to use DC source to supply power. Piezoelectric Accelerometer Model: CA-YD-187T02 Features: - Built-in IEPE, low noise, strong resistance of disturbance - Isolated, Floating, industrial site monitoring - 2-pin MIL-C-5015 two-pin socket output Specifications: Sensitivity(20±5℃) 100 mV/g Measurement Range(pk) ±50 g Max Transverse Sensitivity <5% Frequency Response(±10%) 0.6~10,000 Hz (±3dB) 0.4~13,000 Hz Mounting Resonant Frequency 30 KHz Amplitude linearity ≤1% Operating Temp. Range -40~+120 ℃ Temperature Response See Graph Shock Limit(pk) 5000 g Noise(rms) <50 μV Output Impedance <100 Ω Operating Voltage(Constant current source) 18~28 VDC Operating Current 2~10 mA DC Bias Voltage 12±2 VDC Case Isolation ≥108 Ω Mounting 1/4-28 Sensing Element Piezoelectric Ceramics Sensing Geometry Shear Case Material 304 Stainless steel Weight ~52 g Output Top 5/8-24 2-pin Socket Accessories Certificate Calibration parameters 1/4-28 Stud one Optional: 3106A(5015)Plug, Cable(RVVP) one (3m),one end free
