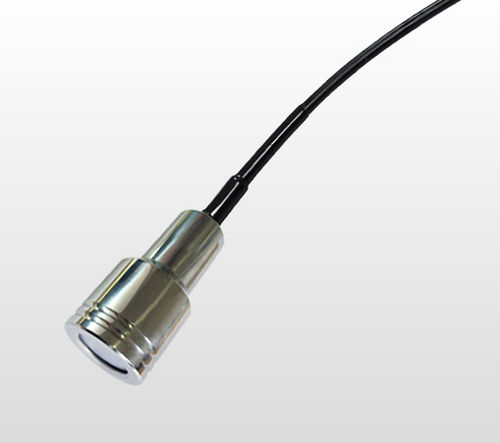

Relative pressure transmitter LH840C
atmosphericceramiccapacitive

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, atmospheric
Technology
ceramic, capacitive, piezoresistive
Output
4-20 mA, HART
Supply voltage
12 Vdc
Mounting
flush diaphragm
Fluid
for gas, for liquids
Material
stainless steel
Protection level
IP68
Applications
process, for the food industry, for water treatment, for marine applications, for railway applications
Other characteristics
compact, two-wire, sanitary
Pressure range

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Precision

0.25 %, 0.5 %

Process temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Description

The LH840C is an ideal pressure or level measurement solution for waste-water, aggressive mediums or other liquids regardless of the amount of sediment, debris or build-up that may occur on the face of the sensor. The LH840C features a flush mounted thick film capacitive ceramic sensor, 316SS body, and a polypropylene vented cable. Pressure ranges from 0…1 bar to 600bar. Optional Accessories: TR202 Relay Digital readout + 2X active relays/ 1X F.S. Relay + passive 4…20mA out CH65 Weatherproof Termination Box – Provides atmospheric venting with terminals for non-vented cable out Application: Level Measurement for Liquids Consumption: Max 22mA Output Signal: 4...20mA (2 wires) + HART protocol Tipo de Sensor: Capacitive Ceramic Electrical Connection: Armored Polyethylene cable with Polyurethane Vent Tube Body Material: 316 Stainless Stel Protection: Polarity inversion and Power surges Water and Waste Water Utilities Sump or River Level Monitoring Sanitary Process Level Measurement Food and Beverage applications Pulp and Paper Industry Transportation, Marine or Rail line cleaning equipment
