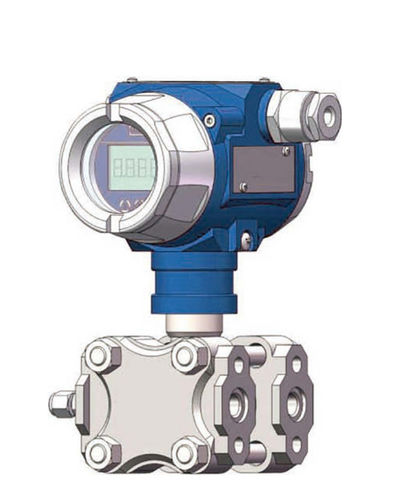

Differential pressure transmitter SPD905X
siliconpiezoresistiveanalog output

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product

Characteristics

Pressure type
differential
Technology
silicon, piezoresistive
Output signal
analog output, digital
Other characteristics
stainless steel, process, for liquids and gases, for the petrochemical industry, IP67, intrinsically safe, flameproof
Process temperature

Max.: 120 °C (248 °F)

Min.: -40 °C (-40 °F)

Pressure range

Max.: 100,000 mbar (1,450.38 psi)

Min.: 2 mbar (0.03 psi)

Description

SPD905X single crystal silicon pressure transmitter is a high performance pressure transmitter with international leading technology meticulously designed by Sitron, using the world’s most advanced single crystal silicon pressure sensor technology and patent encapsulation technology. Single crystal silicon pressure sensor locates on the top of the metal body and stay away from meidium interface to realizes mechanical isolation and thermal isolation. Glass sintering sensor wire realizes high strength electrical insulation of metal base and improves the capability of flexibility of electronic circuit and transient voltage encapsulation technologies enable SPD905X to easily cope with extreme chemical resistance to EMI, sufficient to respond to the most rigorous industrial environment applications, which are the genuine invisible instruments. Application: Pressure, level, differential pressure, density, interface, flow Measuring Medium: Liquid, Gas, Liquid Level, Density and Pressure Operating Voltage: 10.5-55Vdc (Standard) / 16.5-55Vdc (HART) Output Signal: 4...20mA / 4...20mA + HART , others upon request Measurement Range: 200 Pa - 10MPa (2 mBar - 100 Bar), refer to the ordering information on data sheet Accuracy: 0.075% URL, optional 0.05% URL Stability: ±0.2% URL/60 months Diaphragm material: 316SS / Hastelloy C Work Temperature: -40...85°C , LCD display unit: -20...70°C Media Temperature: -40...120°C (silicone oil filled) Process Connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F) Indication: Rotatable LCD display Certificate (optional): Flame proof / Intrinsic safety Class Protection: IP67
