relative pressure transmitter / piezoresistive / membrane / analog
SP 96

Add to MyDirectIndustry favorites
Compare this product

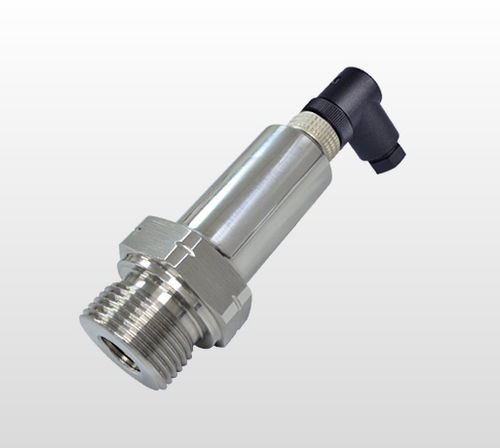

relative pressure transmitter / piezoresistive / membrane / analog relative pressure transmitter / piezoresistive / membrane / analog - SP 96
{{requestButtons}}

Characteristics

  • Pressure type:

    relative

  • Technology:

    membrane, piezoresistive

  • Output signal:

    analog, HART

  • Mounting:

    threaded, flange

  • Other characteristics:

    stainless steel, compact, sanitary, for liquids and gases, for HVAC systems, for marine applications, for railway applications, for boilers, IP65, for refrigeration circuits

  • Process temperature:

    Min.: -10 °C (14 °F)

    Max.: 70 °C (158 °F)

  • Pressure range:

    Min.: -1 bar (-14.5 psi)

    Max.: 200 bar (2,900.75 psi)

Description

The SP96 features an all 316SS body and sensing diaphragm, pressure ranges from 0…300bar and optional HART protocol. Optional Accessories:

TR202 Relay Digital readout + 2X active relays/ 1X F.S. Relay + passive 4…20mA out

Application: Pressure and Level Measurement in Liquids and Gas
Operating Voltage: 12...30 Vdc
Consumption: 22mA Max
Output: 4...20mA (2 wires) / HART Protocol (optional)
Accuracy: Max error of 0.5%
Sensor: 316 S.S Piezoresistive Sensor / Olive oil for Sanitary application
Range: -1...200 Bar
Electrical Connection: DIN 43650 or M12 Connector
Process Connection: BSP/ NPT , Flange or Sanitary
Body Material: 316S.S
Operating Temperature / Compensated: -10 to+70°C (Typical), 0 to+60°C ( 1 Bar) / 0.04% F.S./°C <1 Bar)
Long term stability: 0.2% / Year
Over Pressure: 3x F.S
Class Protection: IP65 (IEC 60529)


General applications
Compressors and Pumps
Sanitary process and control
Refrigeration, HVAC and boilers
Industrial hydraulic machinery
Transportation, marine, rail equipment
