This stage is mostly chosen for applications where a big aperture and highest precision is absolutely essential.

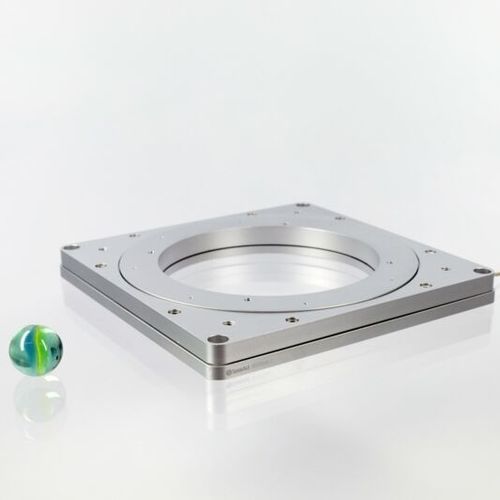

With its 120 x 120 mm footprint, the SR-12012 rotation stage offers an aperture opening of 82 mm while maintaining a low profile with a height of only 12 mm.
Mechanical
Travel [ - ∞
Blocking Torque [Ncm] ≥ 15
Max. Normal Force [N] 20
Dimensions [mm] 120 x 120 x 12
Weight [g] - 320
Aperture [mm] - 82
Open-loop
Angular Velocity [°/s] - ≥ 5
Open-Loop Resolution [µ] < 0.5
Closed-Loop
Sensor Types - S
Closed-Loop Resolution [µ] 5
Options
Material Options - Aluminum as standard; steel base (-ST); titanium base (-TI);
Performance Options - Higher blocking torque
