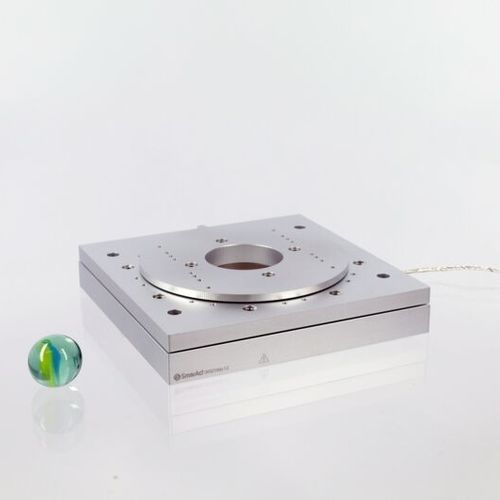

Rotary stage SR-9219C

aluminumvacuum-compatibleclosed-loop

The SR-9219C stage is equipped with a ceramic bearing that provides full ultra-high vacuum compatibility. In addition, versions made of non-magnetic materials are also available. Due to its external dimensions and mounting hole pattern, this rotation stage can be mounted directly onto linear stages of the CLS-92 and MLS-92 Series. Mechanical Travel [ - ∞ Blocking Torque [Ncm] - ≥ 10 Max. Normal Force [N] - 25 Dimensions [mm] - 92 x 92 x 19 Weight [g] - 250 Aperture [mm] - 30 Open-loop Angular Velocity [°/s] - 15 Open-Loop Resolution (H)CU [µ - < 50 Open-Loop Resolution MCS2 [µ - < 1 Closed-Loop Sensor Types - S Sensor Resolution [µ - 15 Angular Velocity [°/s] - 15 Options Material Options - Aluminum as standard; steel base (-ST); titanium base (-TI); Performance Options - Higher blocking torque Vacuum Options - HV (1E-6 mbar); UHV (1E-11 mbar) Non-Magnetic Option - Yes (-NM)
