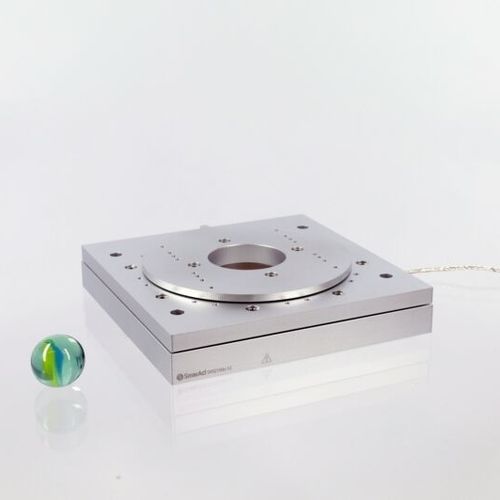

Rotary stage SR-9219

closed-loopaluminumopen-loop

The SR-9219 rotation stage was designed with the compatibility to other SmarAct Product Series in mind, allowing it to be easily mounted to linear stages of the CLS-92 and MLS-92 Series. Mechanical Travel [ - ∞ Blocking Torque [Ncm] - ≥ 10 Max. Normal Force [N] - 25 Dimensions [mm] - 92 x 92 x 19 Weight [g] - 450 Aperture [mm] - 27 Open-loop Angular Velocity [°/s] - 15 Open-Loop Resolution (H)CU [µ - < 50 Open-Loop Resolution MCS2 [µ - < 1 Closed-Loop Sensor Types - L, S Sensor Resolution [µ - 15 Angular Velocity [°/s] - 15 Options Material Options - Aluminum as standard; steel base (-ST); titanium base (-TI); Performance Options - Higher blocking torque Vacuum Options - HV (1E-6 mbar)
