Multi-axis nanopositioning system SMARPOD P-SLC-24

hexapodlinearhorizontal

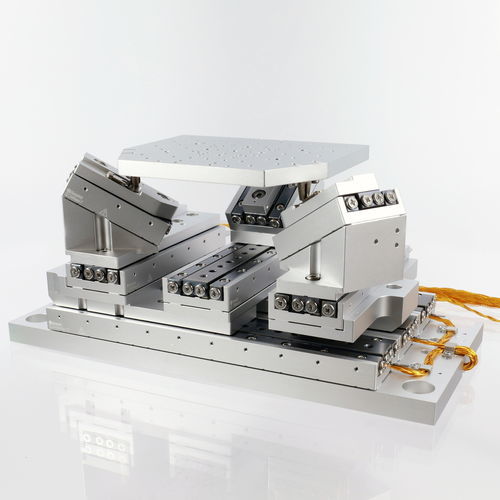

The large-size SMARPOD is based on SLC-24 stages in a parallel orientation offering a large travel of 102 mm in X-direction. The SMARPOD P-SLC-24 can handle payloads of up to 5 N. It is based on a different mechanism than the circular SMARPODS. With nearly the same size, the P-SLC-24 offers a much larger travel of 102 mm in X-direction. Values for rotational travel are given for a pivot point at the surface of the top plate. The overall dimensions of the complete system may be larger for different poses. For more information, see the CAD model in the download area. The repeatability is measured about 20 mm above the top plate of each system, over the full travel range and for a single degree of freedom at a time. Values may be better for shorter travel ranges. For other sizes and travels, please feel free to contact us anytime. Specifications Travel [ - 33 (Θx); 33 (Θy); 36 (Θz) Max. Normal Force [N] - 5 Max. Horizontal Force [N] - 2.5 Dimensions Base Plate [mm] - 195 x 91 Height of Platform above Ground [mm] - 81 Weight [g] - 1890 Closed-Loop Sensor Types - SC Smallest Increment [nm] - 1 Smallest Increment [µ - 3 Options Vacuum Options - HV (1E-6 mbar); UHV (1E-11 mbar) Non-Magnetic Option - Yes (-NM)
