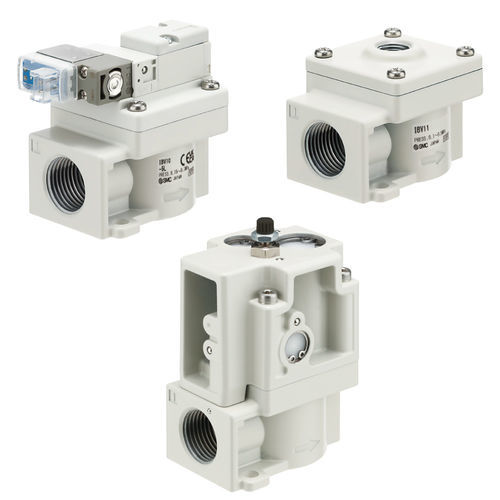

Electrically-actuated valve IBV series

pneumatically-operatedfor airpulse

Product overview

• The Air Saving Impact Blow Valve IBV is designed to generate high peak discharge pressure while significantly reducing air consumption and blow time, delivering increased impact force for industrial air-blowing tasks.

Key benefits

• Higher impact force through increased peak pressure (2–3× or more versus conventional solutions).
• Instantaneous air discharge reduces CO2 emissions, air consumption and operation time.
• Air consumption reduction: up to 93%.
• Operation time reduction: up to 97%.
• Pulse-function variant available [New].
• Tank-connected type available (made to order) [New].

Features

• Enables high peak pressure discharge for effective debris removal, drying and part ejection.
• Significant reductions in operation time and compressed-air usage.
• Four selectable electrical entry directions for installation flexibility.
• Multiple models to match varied application requirements.
• Suitable where energy saving and short blow times are required.

Series / Variants
Series | Type / Notes | Port size | Operating pressure range
IBV10 | Solenoid valve type | IN: 3/8, OUT: 1/4 | 0.15 to 0.7 MPa
IBV11 | Air-operated type, without pulse function | IN: 3/8, OUT: 1/4, Pilot port: 1/8 | 0.1 to 0.5 MPa
IBV12 | Air-operated type, A type with pulse function | IN: 3/8, OUT: 1/4 | 0.3 to 0.7 MPa

Applications

• High-impact air blowing tasks requiring reduced air consumption.
• Situations benefiting from instantaneous high peak pressure (debris removal, drying, part ejection, etc.).

Manuals / Documents

• Operation manuals and documentation available for IBV series (IBV10 / IBV11 / IBV12).

Technical specifications

• Model family: IBV
• Variants: IBV10 (solenoid valve type), IBV11 (air-operated, no pulse), IBV12 (air-operated with pulse)
• Port size (IBV10 / IBV11 / IBV12): IN 3/8, OUT 1/4
• Pilot port (IBV11): 1/8
• Operating pressure ranges: IBV10: 0.15–0.7 MPa; IBV11: 0.1–0.5 MPa; IBV12: 0.3–0.7 MPa
• Performance: peak pressure 2–3× or more vs conventional; air consumption reduction up to 93%; operation time reduction up to 97%
• Options: pulse function (IBV12), tank-connected type (made to order)
