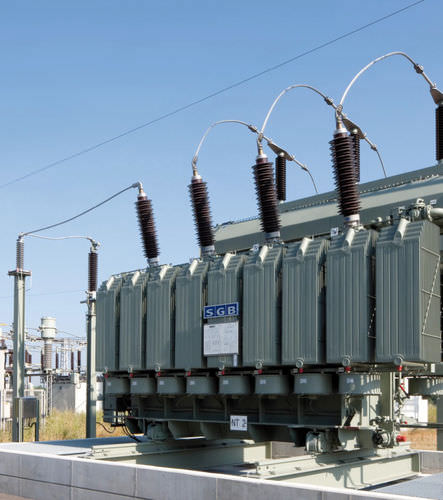

Power transformer immersedpad-mount
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- immersed
- Mounting
- pad-mount
- Electric power
Min.: 5,000 kVA
(6,798.1058 hp)Max.: 100,000 kVA
(135,962.1155 hp)- Primary voltage
245 kV
Description
Our customers appreciate our high degree of expertise and the 100% reliability of our transformers. A guarantee of this is the continually increased knowledge over many years in the construction and development of power transformers. This is why we are equipped to deal with virtually every customer’s wish:
Our power transformers are manufactured with a rated capacity of between 5 and 100 MVA and for service voltages of up to 245 kV.
To adapt the voltage, it is possible to provide on-load tap changers for max. 22 % tapping range for adjustment in up to 27 steps under load, or off-load tap changers for example for 5 % tapping range for adjustment off circuit.
Often used connection groups include YNd5, YNd11 or Ynyn0, YNyn6 with and without delta stabilising windings.
