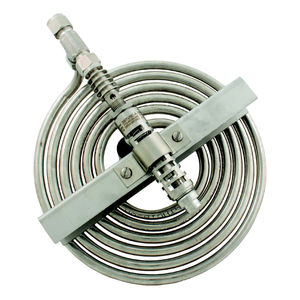

Temperature control thermostatic valve TV/SC-I

stainless steelfor gasfor liquids

TV/SC-I temperature control valves maintain the temperature in instrument enclosures to protect instrumentation from freezing or overheating caused by an uncontrolled heating element. The TV/SC-I valve is installed in the enclosure wall with the heating element inside the enclosure to sense the ambient temperature and regulate the steam supply to precisely maintain the desired temperature in the enclosure. Technical Specifications - Maximum operating pressure: 13.8 barg (200 psig) - Maximum temperature at valve end: 198°C (388°F) - Maximum temperature at valve tip: 83.3°C (150°F) above setpoint with a limit at 149°C (300°F) - Connections: 1/2" or 3/8" - Material: - Valve: 300 stainless steel - Bulkhead fitting: acetal copolymer - Possible opening temperature: From 1.7°C (35°F) to 93.3°C (200°F) - Closing temperature: 5.5°C (10°F) above opening temperature Features - Temperature control valve - Mechanical operation (paraffin wax) without power supply or signal Key characteristics / technical specifications: - Maximum operating pressure: 13.8 barg (200 psig) - Maximum temperature at valve end: 198°C (388°F) - Maximum temperature at valve tip: 83.3°C (150°F) above setpoint, limit at 149°C (300°F) - Connections: 1/2" or 3/8" - Valve material: 300 stainless steel - Bulkhead fitting material: acetal copolymer - Possible opening temperature: 1.7°C (35°F) to 93.3°C (200°F) - Closing temperature: 5.5°C (10°F) above opening temperature - Mechanical operation (paraffin wax), no power supply or signal required
