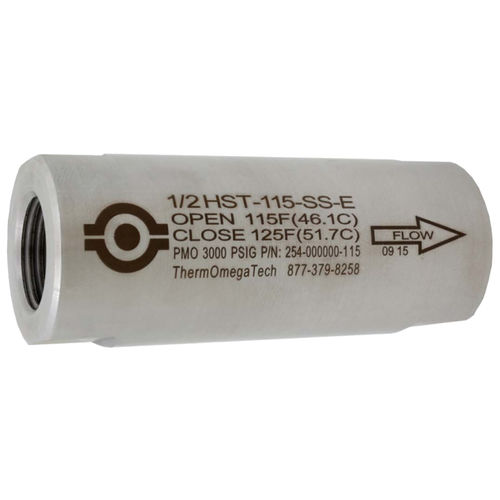

Temperature control thermostatic valve HST

stainless steelfor gasfor liquids

HST valves prevent excessively hot samples from reaching and damaging the analyzer and other electronic instruments. The sample normally flows through the open valve when the sample temperature is below the valve's set point. If the sample temperature exceeds this setpoint, the HST valve closes. When the temperature drops below the set point, the valve opens again. Technical Specifications - Maximum operating pressure: 206.8 barg (3000 psig) - Maximum temperature: 149°C - Connections: 1/2" FNPT - Material: Valve: 303 stainless steel or 316/316L stainless steel, Seals: EPDM, Viton or Kalrez - Possible opening temperature: From 37.7°C (100°F) to 85°C (185°F) - Closing temperature: 5.5°C (10°F) above opening temperature Features - Temperature control valve - High temperature safety shutdown, Sample cooler temperature control - Mechanical operation (paraffin wax) without power supply or signal Key characteristics / technical specifications - Maximum operating pressure: 206.8 barg (3000 psig) - Maximum temperature: 149°C - Connections: 1/2" FNPT - Valve material: 303 stainless steel or 316/316L stainless steel - Seals: EPDM, Viton or Kalrez - Possible opening temperature: From 37.7°C (100°F) to 85°C (185°F) - Closing temperature: 5.5°C (10°F) above opening temperature - Mechanical operation (paraffin wax) without power supply or signal
