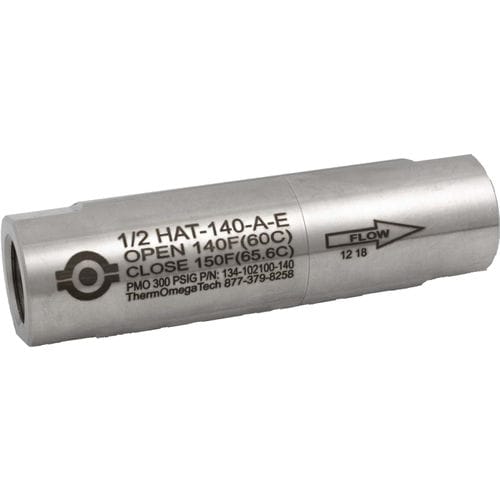

Temperature control thermostatic valve HAT

stainless steelfor gasfor liquids

HAT valves are self-actuated thermal control valves, designed to regulate fluid temperatures according to predefined thresholds. They keep systems warm and prevent freeze damage in a wide range of applications. They control fluid return temperatures and are ideal for glycol tracing. Technical Specifications - Maximum operating pressure: 20.7 barg (300 psig) - Maximum temperature: 83.3°C (150°F) above setpoint with a limit at 149°C (300°F) - Connections: 1/2" or 3/4" - Material: - Valve: 300 stainless steel - Seal: EPDM, Viton, Kalrez or Silicone - Possible opening temperature: From 4.4°C (40°F) to 93.3°C (200°F) - Closing temperature: 5.5°C (10°F) above opening temperature Features - Temperature control valve - Freeze Protection, Steam Trap, Glycol Thermal Tracing - Mechanical operation (paraffin wax) without power supply or signal Characteristics / Technical Specifications - Self-actuated thermal control - Prevents freeze damage - Regulates fluid return temperature - Ideal for glycol tracing - Maximum pressure: 20.7 barg (300 psig) - Maximum temperature: up to 149°C (300°F) - Connection sizes: 1/2" or 3/4" - Valve material: 300 stainless steel - Seal options: EPDM, Viton, Kalrez, Silicone - Opening temperature range: 4.4°C to 93.3°C (40°F to 200°F) - Closing temperature: 5.5°C (10°F) above opening - Mechanical operation, no external power required
