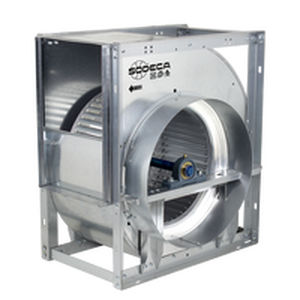

IP55 fan TSA seriescentrifugalextractionventilation
Add to favorites
Compare this product
Characteristics
- Type
- IP55
- Configuration
- centrifugal
- Function
- extraction, ventilation, anti-corrosion
- Supply voltage
- 230VAC, 400VAC, 690 V
- Other characteristics
- belt-driven, single-inlet
- Air flow
Max.: 38,000 m³/h
(1,341,957.335 ft³/h)Min.: 4,800 m³/h
(169,510.4 ft³/h)- Rotational speed
Max.: 1,500 rpm
(9,425 rad.min-1)Min.: 600 rpm
(3,770 rad.min-1)
Description
Belt driven centrifugal fans with single inlet with shaft output and forward curved impeller
Fan:
• Galvanised steel sheet casing.
• Forward curved impeller in galvanised sheet steel.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +85 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Different outlet positions.
• Special windings for different voltages.
• With two speed motors.
