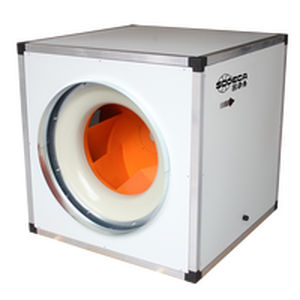

Centrifugal fan CJPF seriesventilation230VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- ventilation
- Supply voltage
- 230VAC, 400 VAC
- Drive mechanism
- electrically-powered
- Material
- aluminum, steel
- Other characteristics
- anti-corrosion, IP55, plug, backward curved
- Air flow
Max.: 21,500 m³/h
(759,265.335 ft³/h)Min.: 4,185 m³/h
(147,791.88 ft³/h)- Rotational speed
Max.: 1,440 rpm
(9,048 rad.min-1)Min.: 945 rpm
(5,938 rad.min-1)- Noise level
Max.: 42 dB
Min.: 30 dB
Description
Large airflow ventilation units with high efficiency Plug Fan
Large airflow ventilation units equipped with Plug Fan type fan and acoustic casing with interchangeable covers for easy installation.
Fan:
• Aluminium profile structure.
• Covers with a high quality, 25 mm thick acoustic casing made of prefinished sheet.
• Backward curved impeller.
• Standardised inlet and outlet flanges allowing for easy installation in ducts.
• Interchangeable covers to supply air on either side.
• Air inlet nozzle with diffusers that increase the efficiency of the fan.
• Silentblocks to avoid the transmission of vibrations and a correct anchoring of the equipment.
Motor:
• IE3 efficiency AC motors.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz.
• Working temperature: -25 ºC +60 ºC.
Finish:
• Anti-corrosive in pre-lacquered steel sheet and aluminum profiles.
On request:
• With two speed motors.
• Complete with a pressure measurement connection point for optional automatic flow and pressure control.
• ATEX certification.
