Centrifugal fan CBD/B seriesextractionventilation220VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- extraction, ventilation
- Supply voltage
- 230VAC, 220VAC, 240 VAC
- Drive mechanism
- electrically-powered
- Material
- galvanized steel
- Other characteristics
- anti-corrosion, IP54, double-inlet
- Air flow
Max.: 11,400 m³/h
(402,587.201 ft³/h)Min.: 1,230 m³/h
(43,437.04 ft³/h)- Rotational speed
Max.: 1,320 rpm
(8,294 rad.min-1)Min.: 820 rpm
(5,152 rad.min-1)- Noise level
Max.: 75 dB
Min.: 53 dB
Description

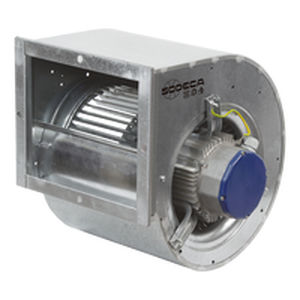

Centrifugal double inlet fans with outlet flange and without support feet
Fan:
• Galvanised steel sheet casing.
• Forward curved impeller in galvanised sheet steel.
Motor:
• High efficiency (HE) motors in compliance with ErP 2015.
• Enclosed motors with built-in thermal protector, class F, with ball bearings, IP54 protection.
• Single-phase 220-240 V 50 Hz and three-phase 220-240/380-415 V 50 Hz.
• Working temperature: -25 ºC +60 ºC.
Finish:
• Galvanised steel sheet.
