Centrifugal fan CDXR ventilation230VAC400VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- ventilation
- Supply voltage
- 230VAC, 400VAC
- Drive mechanism
- electrically-powered
- Material
- galvanised steel
- Other characteristics
- belt-driven, double-inlet, backward curved, IP55, ATEX
Description

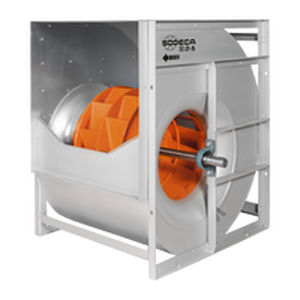

Belt driven centrifugal double inlet fans with shaft output on both sides and backward curved impeller
Fan:
• Galvanised steel sheet casing.
• Backward curved impeller made of painted sheet steel.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +60 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Different outlet positions.
• Special windings for different voltages.
• With two speed motors.
• ATEX certification.
