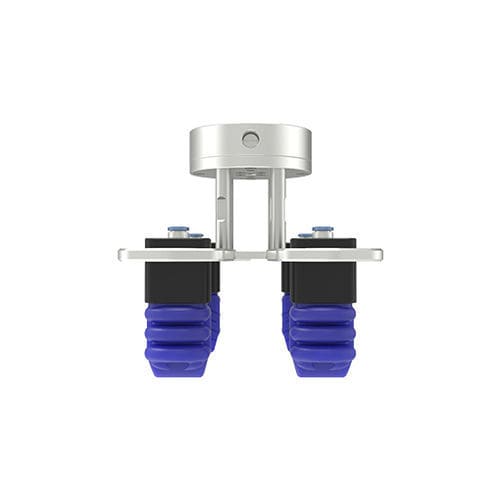

Soft gripper SFG-FNM4-N3034
pneumaticpneumatic actuation4-jaw

soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
soft gripper
Add to favorites
Compare this product


Characteristics

Operation
pneumatic, pneumatic actuation
Type
soft
Number of jaws
4-jaw
Application
for industrial robots, for handling systems, for the food industry, for the pharmaceutical industry, for clean rooms, for bottles, for collaborative robots, for fabric, for lightweight robots, for palletization robots, for the automotive industry, palletizing, for assembly, for cardboard boxes, for vegetables, for laboratories, for small loads, for the electronics industry, for sheet metal, for fruit, for lifting applications
Options
compact
Grip strength

Min.: 7 N

Max.: 7 N

Stroke

Min.: 15 mm
(0.591 in)

Max.: 19 mm
(0.748 in)

Description

The SFG flexible gripper is an innovative flexible gripper that imitates the starfish design and simulates human grasping. Realize bending deformation by inflating, cover the target object adaptively, and complete the grasping action; realize reverse deformation by pumping, complete the placing or pre-grabbing action; good compatibility, many types, gentle action, suitable for most special shapes , Grab vulnerable items. performance parameter Wb - 128 Wn - 30 Wm - 67 Hb - 200 Gn - 13-142 Lb - 68.2 Lt - 62.7 Ln - 53.5 L - 34 Gn+2Smax - 13-172 load g - 2000 product weight g - 575 maximum working pressure - 100kPa product life - 300w

VIDEO
