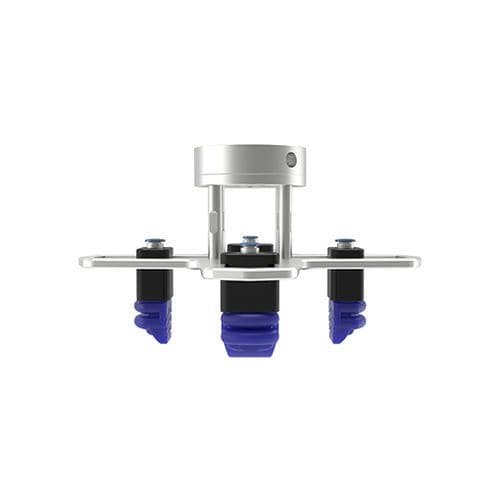

Pneumatic gripper SFG-FNC4-N3025soft4-jawfor collaborative robots
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- soft
- Number of jaws
- 4-jaw
- Application
- for collaborative robots, for industrial robots, for cardboard boxes, for laboratory automation, for handling systems, for small loads, for the electronics industry, for glass jars, for lightweight robots, for the food industry, for workpieces, for vegetables, for lifting applications, for sheet metal, for the pharmaceutical industry, for palletization robots, for clean rooms, for fresh products, for bottles, for the automotive industry, for assembly, for fruit
- Options
- double-acting, with ejectors, with suction cup, tactile sensor systems, 4 fingers
- Grip strength
Max.: 8 N
Min.: 8 N
- Stroke
Max.: 10 mm
(0.394 in)Min.: 6 mm
(0.236 in)
Description
The SFG flexible gripper is an innovative flexible gripper that imitates the starfish design and simulates human grasping. Realize bending deformation by inflating, cover the target object adaptively, and complete the grasping action; realize reverse deformation by pumping, complete the placing or pre-grabbing action; good compatibility, many types, gentle action, suitable for most special shapes , Grab vulnerable items.
performance parameter
φb - 200
Wn - 30
Dn - 31-142
Lb - 68.2
Lt - 62.7
Ln - 44
L - 25
Dn+2Smax - 31-154
load g - 1920
product weight g - 507
maximum working pressure - 100kPa
product life - 300w
