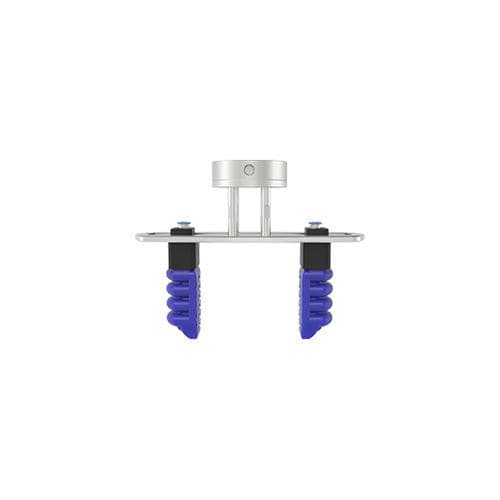

Soft gripper SFG-FNM2-N4062pneumaticpneumatic actuation2-jaw
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, pneumatic actuation
- Type
- soft
- Number of jaws
- 2-jaw
- Application
- for industrial robots, for handling systems, for assembly, for the food industry, for reel handling, for cardboard boxes, for packaged goods, for panels, for wooden sheets, for vegetables, for laboratories, for glass jars, for collaborative robots, sprue picker, for fruit, for palletization robots, for fresh products, for the automotive industry, for bottles, palletizing, for sheet metal, for clean rooms, for the pharmaceutical industry, for the electronics industry, for the cosmetics industry, for lifting applications
- Options
- double-acting
- Grip strength
8.5 N
- Stroke
Max.: 36 mm
(1.417 in)Min.: 25 mm
(0.984 in)
Description
The SFG flexible gripper is an innovative flexible gripper that imitates the starfish design and simulates human grasping. Realize bending deformation by inflating, cover the target object adaptively, and complete the grasping action; realize reverse deformation by pumping, complete the placing or pre-grabbing action; good compatibility, many types, gentle action, suitable for most special shapes , Grab vulnerable items.
performance parameter
Wb - 60
Wn - 40
Wm - /
Hb - 200
Gn - 0-133
Lb - 68.2
Lt - 62.7
Ln - 86.5
L - 62.5
Gn+2Smax - 0-183
load g - 1160
product weight g - 490
maximum working pressure - 100kPa
product life - 300w
