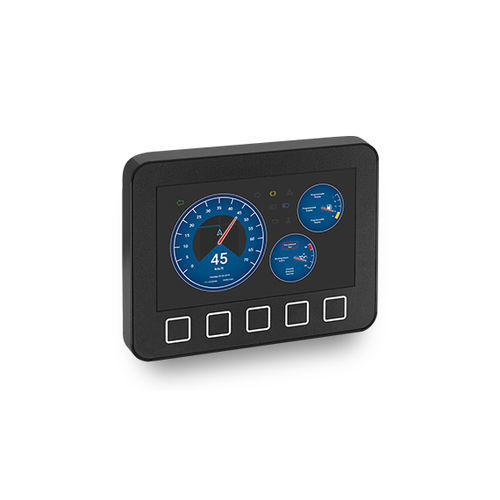

TFT display CAN

high-resolution5"industrial

CAN Display for visualization, moni­tor­ing and control of ma­chine data The display has a 5 inch TFT 16:9 display and convinces with a high resolution and good read­a­bil­ity, even in poor light­ing con­dit­ions. Via CAN accor­ding to ISO 11898 and with J1939 pro­to­col sup­port, status in­for­ma­tion such as alarm mes­sages can be dis­play­ed or a spe­cif­ic dia­gnos­tic evaluation can be made. The operation is simple and clearly ar­ranged by means of five il­lu­mi­na­ted buttons and allows a quick and easy na­vi­ga­tion. Own customer applications can be implemented using the MDT® 2.0 authoring system. This allows an individual design and uni­que graph­i­cal user inter­faces, while adhering to the com­mon dia­gnos­tic stan­dards ODX and OTX. Thus, the manu­fac­tur­er is not only able to design his user inter­faces and proces­ses on the display, but at the same time to set up the display as an anal­ys­is ins­tru­ment in con­si­der­a­tion of dia­gnos­tic standards. Embedded dia­gnos­tics of your systems is thus possible.
